Excavated pond
What Is an Excavated Pond?
An excavated pond is a water storage structure created by removing soil and shaping the ground to form a designed basin for collecting and storing water.
Excavated ponds are widely used in agriculture, irrigation, aquaculture, livestock farming, rainwater harvesting, industrial water storage, landscaping, and water management projects.
Unlike above-ground tanks, an excavated pond is formed directly within the ground. Depending on site conditions, the excavated soil may be used to build embankments around the pond while the basin itself provides the required storage capacity.
One of the most important considerations when building an excavated pond is water retention. If the natural soil is permeable, a significant amount of stored water can gradually infiltrate into the surrounding ground.

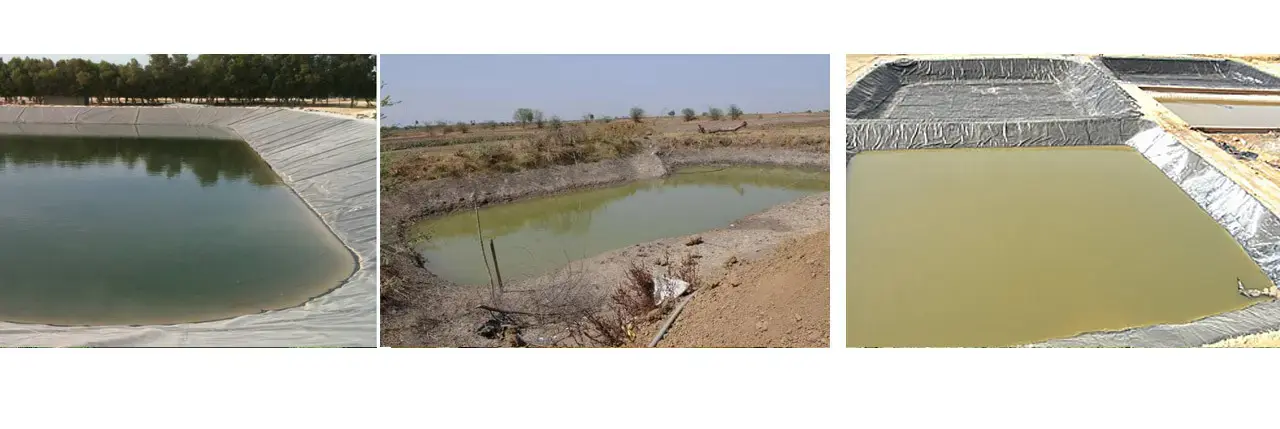

For this reason, many modern excavated ponds are lined with geomembrane to create an effective waterproof barrier.
A properly designed geomembrane-lined excavated pond can provide reliable water storage while reducing seepage, protecting the soil, and making water management more efficient.
Why Are Excavated Ponds Used?
Water availability isn't always consistent throughout the year. Rainfall, groundwater availability, agricultural demand, and seasonal water consumption can all vary significantly.
An excavated pond offers a practical way to store water during periods of availability and use it later when demand increases.
Agricultural producers, for example, can collect water during rainy periods and store it for irrigation during dry spells. Farms can also use excavated ponds for livestock water, aquaculture operations, or other agricultural needs.
The ability to create a storage reservoir directly on available land makes excavated ponds a flexible solution across many types of projects.
Main Applications of Excavated Ponds
Excavated ponds can be designed for a wide range of applications.
Agricultural Water Storage
One of the most common uses is storing water for agricultural irrigation. Water can be collected from wells, canals, reservoirs, rainfall, or other sources and stored in the pond until it's needed. A geomembrane liner can significantly reduce seepage and help preserve that stored water.
Irrigation Reservoirs
Excavated ponds can serve as small or medium-sized irrigation reservoirs, with stored water transferred through pumps, pipes, or water transfer channels to agricultural fields.
Rainwater Harvesting
Rainwater can be collected from surrounding areas and directed into an excavated pond, allowing rainfall that would otherwise run off the property to be stored for later use.
Fish Farming and Aquaculture
Excavated ponds can also be used for fish farming and aquaculture. When lined with geomembrane, operators can achieve better control over water retention and pond conditions, and the smooth liner can make cleaning and maintenance easier.
Livestock Water Storage
Agricultural operations may use excavated ponds to store water for livestock. Proper pond design and water management are essential for maintaining suitable water quality.
Industrial Water Storage
Industrial facilities may use excavated ponds for storing process water, rainwater, cooling water, or other non-potable water streams. The lining material should be chosen according to the characteristics of the stored water.
Landscape and Recreational Ponds
Excavated ponds can also serve landscaping, decorative water features, parks, gardens, and recreational areas, with the design adapted to the desired appearance and surrounding landscape.
Benefits of Excavated Ponds
A properly designed excavated pond offers several advantages.
Because the pond is excavated directly into the ground, relatively large volumes of water can be stored without building a tall above-ground structure. This also allows for efficient use of the available land, with the pond designed around the site and the required storage capacity.
The basin itself can take different shapes and dimensions depending on project needs — rectangular, square, irregular, trapezoidal, or a custom configuration suited to the site.
Lining the pond with geomembrane also cuts down water loss significantly. Natural soil can allow water to infiltrate into the ground, but a geomembrane liner creates a low-permeability barrier that greatly reduces this kind of loss.
An engineered pond can also include dedicated inlet, outlet, overflow, and drainage systems, which makes it much easier to control water levels and manage the stored water. And when properly designed and constructed, a lined excavated pond can provide reliable water storage for many years.
The Role of Geomembrane in Excavated Ponds
Geomembrane is one of the most important materials used for waterproofing excavated ponds. The membrane is installed across the bottom and side slopes of the excavated basin, and its primary function is to create a barrier between the stored water and the surrounding soil.
This matters especially when the soil has high permeability. Without an appropriate liner, water can gradually migrate through the soil, reducing storage efficiency. A geomembrane-lined pond helps keep water inside the designed basin where it belongs.
Why Use Geomembrane for an Excavated Pond?
The main reason to use geomembrane is seepage control — reducing water loss, which can be particularly valuable in sandy, gravelly, fractured, or otherwise permeable soils.
By reducing infiltration, more of the stored water stays available for its intended use, which matters a lot in agricultural areas where water resources are limited.
Geomembranes can also be installed flexibly, adapted to properly prepared soil surfaces and to the specific geometry of the pond. The liner separates stored water from the soil, which can reduce erosion caused by continuous water movement, and it creates a relatively smooth surface that makes sediment and debris removal easier.
High-quality geomembranes can also provide long-term waterproofing when properly selected, installed, protected, and maintained.
Choosing the Right Geomembrane for an Excavated Pond
Selecting the correct geomembrane is an important part of pond design. Two commonly considered materials are HDPE and LLDPE geomembranes.
HDPE geomembrane is known for high tensile strength, good chemical resistance, durability, low permeability, and resistance to environmental exposure. It can be a good fit for large agricultural and industrial ponds where mechanical strength and durability matter most.
LLDPE geomembrane generally offers greater flexibility than HDPE, which can be useful where the pond has complex geometry or where some ground movement or settlement might occur.
The final choice should be based on the specific conditions of the project — pond size, soil type, ground movement, water characteristics, climate, UV exposure, installation method, required service life, and expected mechanical loads.
Geotextile Protection Beneath the Geomembrane
The quality of the soil surface beneath the geomembrane matters a great deal. Sharp stones, roots, construction debris, and uneven surfaces can create localized stress and potentially damage the liner.
A geotextile protection layer can be installed beneath the geomembrane to provide separation and cushioning. It helps reduce the risk of puncture, abrasion, mechanical damage, and stress concentration.
The right geotextile type and weight should be chosen based on soil conditions and project requirements.
Excavated Pond Design Considerations
Several factors should be evaluated before excavating and lining a pond.
Site selection matters — the site should be assessed for soil conditions, topography, groundwater, accessibility, water source, drainage, available land, and environmental conditions.
Pond capacity needs to be worked out before construction, based on water demand, rainfall, available water sources, irrigation requirements, and project objectives.
Pond depth affects storage capacity, excavation costs, slope stability, and water management, and should be chosen according to project requirements and site conditions.
Side slopes need to be designed for adequate stability — very steep slopes can increase the risk of soil movement or liner stress.
And a suitable freeboard should be left between the maximum operating water level and the top of the pond embankment, to reduce the risk of overtopping from rainfall, wave action, or unexpected inflow.
Excavated Pond Construction Process
A professionally built excavated pond generally goes through several stages.
It starts with a site investigation, evaluating soil characteristics, groundwater conditions, topography, and water requirements.
Next comes excavation, where the pond basin is dug according to the approved design, with excavated soil sometimes used to build or reinforce surrounding embankments.
Then subgrade preparation — the pond floor and side slopes are graded and compacted, and sharp stones, roots, debris, and other objects that could damage the geomembrane are removed.
Where required, a protective geotextile layer is installed over the prepared subgrade, followed by geomembrane installation, where sheets are carefully placed across the bottom and side slopes according to the pond geometry and welding plan.
The individual sheets are then joined through geomembrane welding, using appropriate equipment — hot wedge welding is commonly used for long seams, while extrusion welding handles details, corners, repairs, and difficult areas.
Welded seams are inspected and tested according to the project's quality-control requirements, and then inlet, outlet, overflow, and drainage structures are installed and integrated with the liner.
Finally, the complete lining system is inspected before the pond is filled.
Water Inlet and Outlet Systems
A properly designed excavated pond needs more than just a waterproof basin — water has to be able to enter and leave in a controlled way.
The inlet should be designed to deliver water without causing excessive erosion or turbulence. The outlet allows controlled removal of stored water for irrigation or other uses. An overflow structure protects the pond from excessive water levels during heavy rainfall or unexpected inflow, and a drainage system may be needed to safely remove water during maintenance, cleaning, or emergencies.
All penetrations through the geomembrane should be carefully detailed to reduce leakage risks.
Common Problems in Poorly Designed Excavated Ponds
Poor design and construction can lead to a number of problems.
The most common issue is excessive water loss through the soil, from water seepage. Sharp objects beneath the liner can cause geomembrane punctures. Poor installation or inadequate anchoring can let the liner move or become exposed. Rainfall and uncontrolled water flow can erode pond embankments. Inadequate drainage can create unwanted water accumulation around the pond. Pipe connections, outlets, and other penetrations that aren't carefully detailed can leak. And insufficient freeboard or inadequate overflow capacity can cause the water to exceed the designed pond level and overtop the embankment.
How to Improve Excavated Pond Performance
The performance and service life of an excavated pond can be improved by following a few key principles: conduct a proper site investigation, determine the required storage capacity, design stable pond slopes, provide adequate freeboard, properly prepare and compact the subgrade, remove sharp stones and debris, use geotextile protection where needed, select an appropriate geomembrane, install the liner professionally, use reliable welding equipment, inspect and test all seams, carefully detail pipe penetrations, provide suitable inlet, outlet, and overflow systems, and establish a regular inspection and maintenance program.
Excavated Pond vs. Unlined Earthen Pond
An unlined earthen pond can be economical where the natural soil has low permeability and some water loss through seepage is acceptable. In permeable soils, though, an unlined pond can lose significant amounts of water
A geomembrane-lined excavated pond offers a more controlled waterproofing system. The initial construction cost may be higher, but the reduction in water loss can provide significant long-term value, especially for agricultural projects where water availability is limited.
The best solution ultimately depends on soil conditions, water requirements, project budget, pond size, and expected operating life.
GeoKhanjani Excavated Pond Lining Services
GeoKhanjani provides professional geomembrane lining solutions for excavated ponds and water storage projects, helping clients build reliable and efficient water storage systems using modern geosynthetic materials.
Depending on the project, the system may include geomembrane pond lining, HDPE or LLDPE geomembrane installation, protective geotextile, geomembrane welding, seam inspection and quality control, inlet and outlet detailing, overflow and drainage solutions, pond waterproofing, and excavated pond lining.
GeoKhanjani can evaluate the project conditions and help determine the right combination of geomembrane and protective materials. The goal isn't simply to cover the pond with a plastic membrane — proper pond lining requires subgrade preparation, correct material selection, professional installation, reliable welding, careful detailing, and quality control.
Why Choose GeoKhanjani for Excavated Pond Lining?
The performance of a geomembrane-lined pond depends heavily on installation quality. Even a high-quality geomembrane can be damaged if the substrate is poorly prepared or the liner is improperly handled and welded.
GeoKhanjani focuses on the complete lining process — preparation, material installation, welding, protection, and inspection. This integrated approach helps reduce leakage risks and improves the long-term reliability of the water storage system.
Conclusion
An excavated pond is a practical and flexible solution for storing water for agriculture, irrigation, aquaculture, livestock, industry, rainwater harvesting, and other applications.
Its success, though, depends heavily on its ability to retain water. In locations where natural soil has significant permeability, geomembrane lining offers an effective solution for reducing seepage and improving water conservation.
The combination of geomembrane, protective geotextile, proper subgrade preparation, reliable welding, and appropriate inlet, outlet, overflow, and drainage systems can create a durable and efficient water storage structure.
GeoKhanjani provides professional excavated pond lining and geomembrane installation services, helping clients develop waterproof and reliable pond systems suited to their project requirements. From material selection and substrate preparation to geomembrane installation, welding, seam inspection, and final quality control, a professionally executed lining system can significantly improve the performance and service life of an excavated pond.
For agricultural and industrial projects where water conservation matters, a properly designed and geomembrane-lined excavated pond can be a valuable long-term investment.
