textured geomembrane

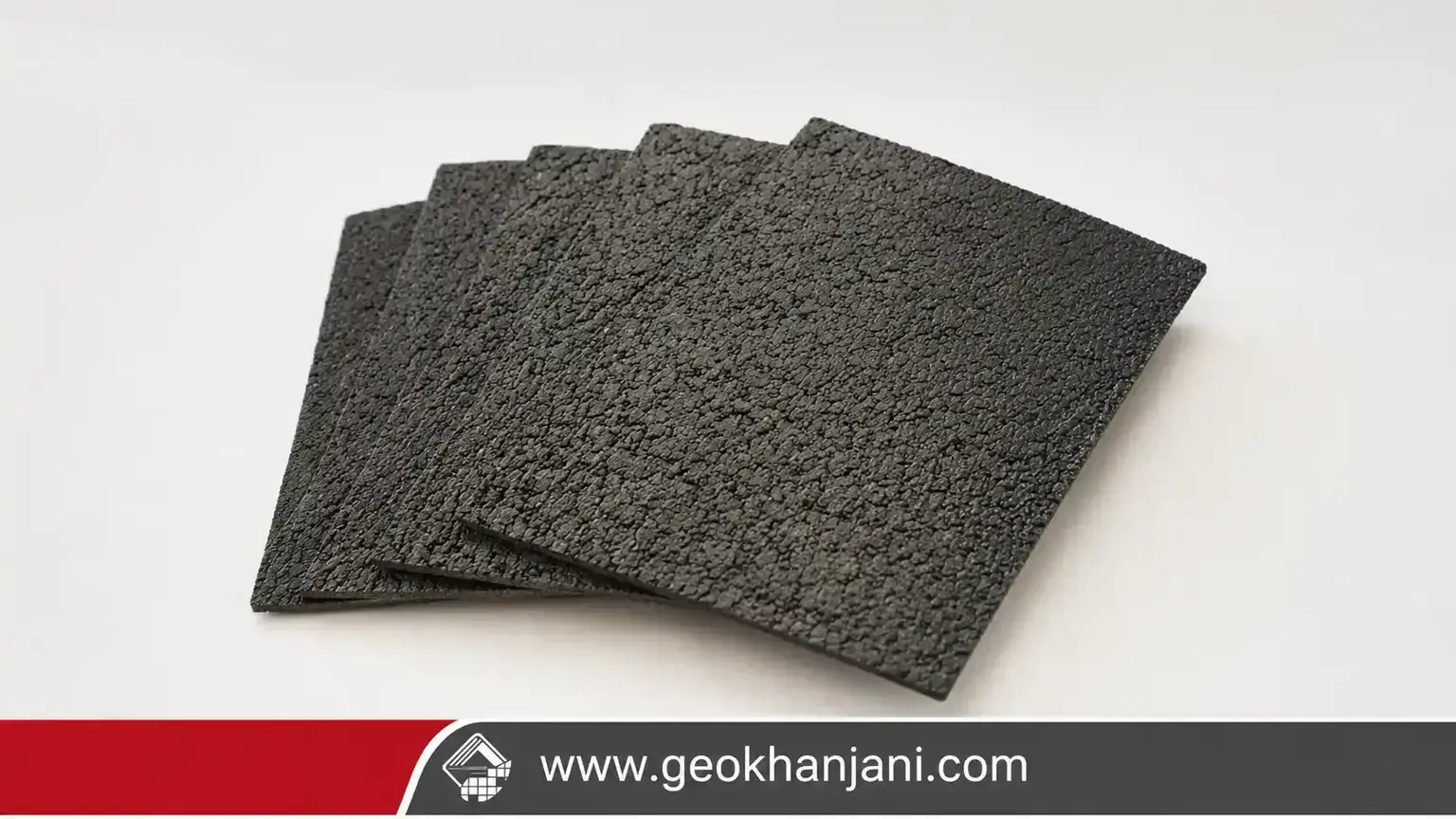

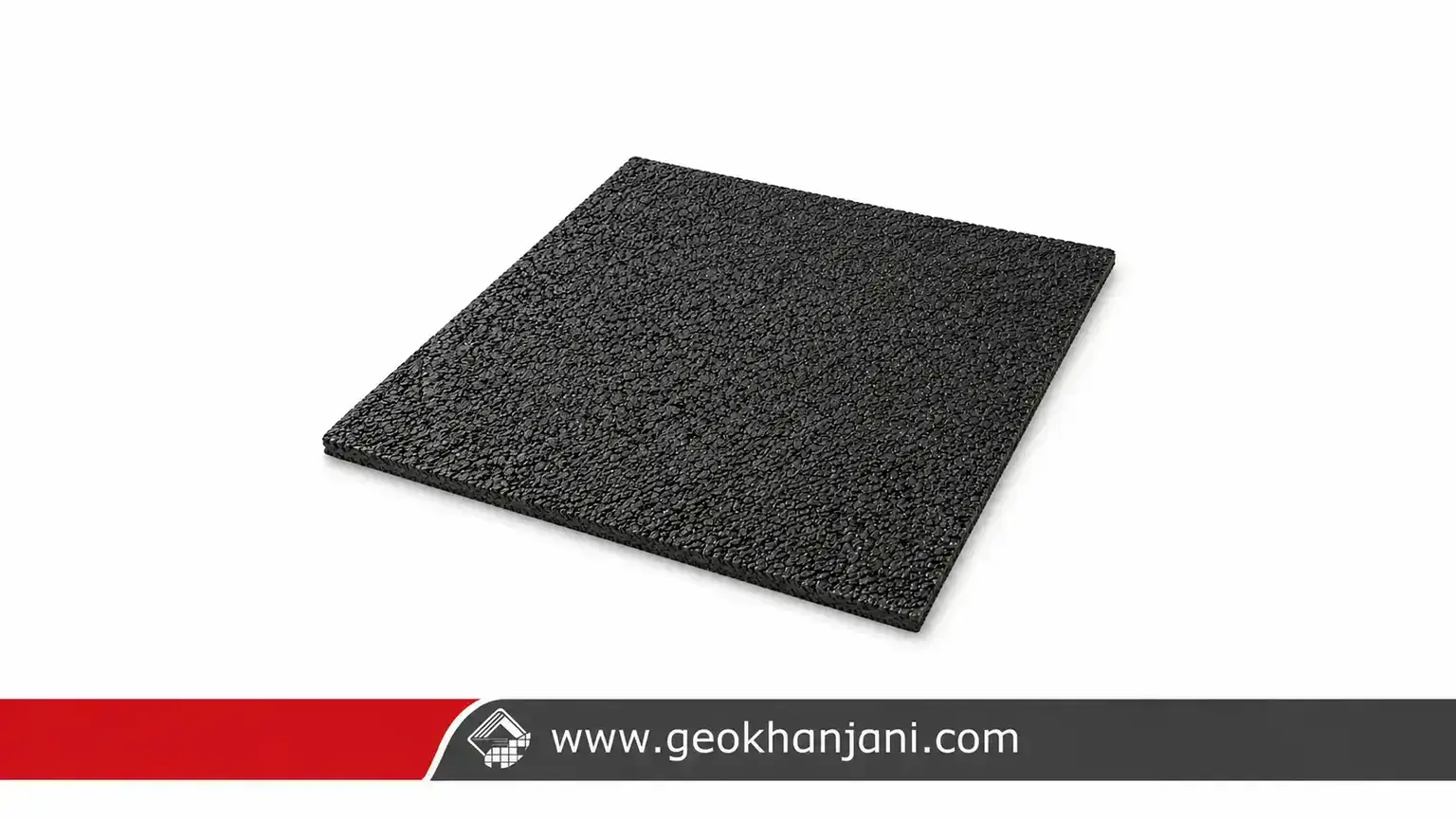

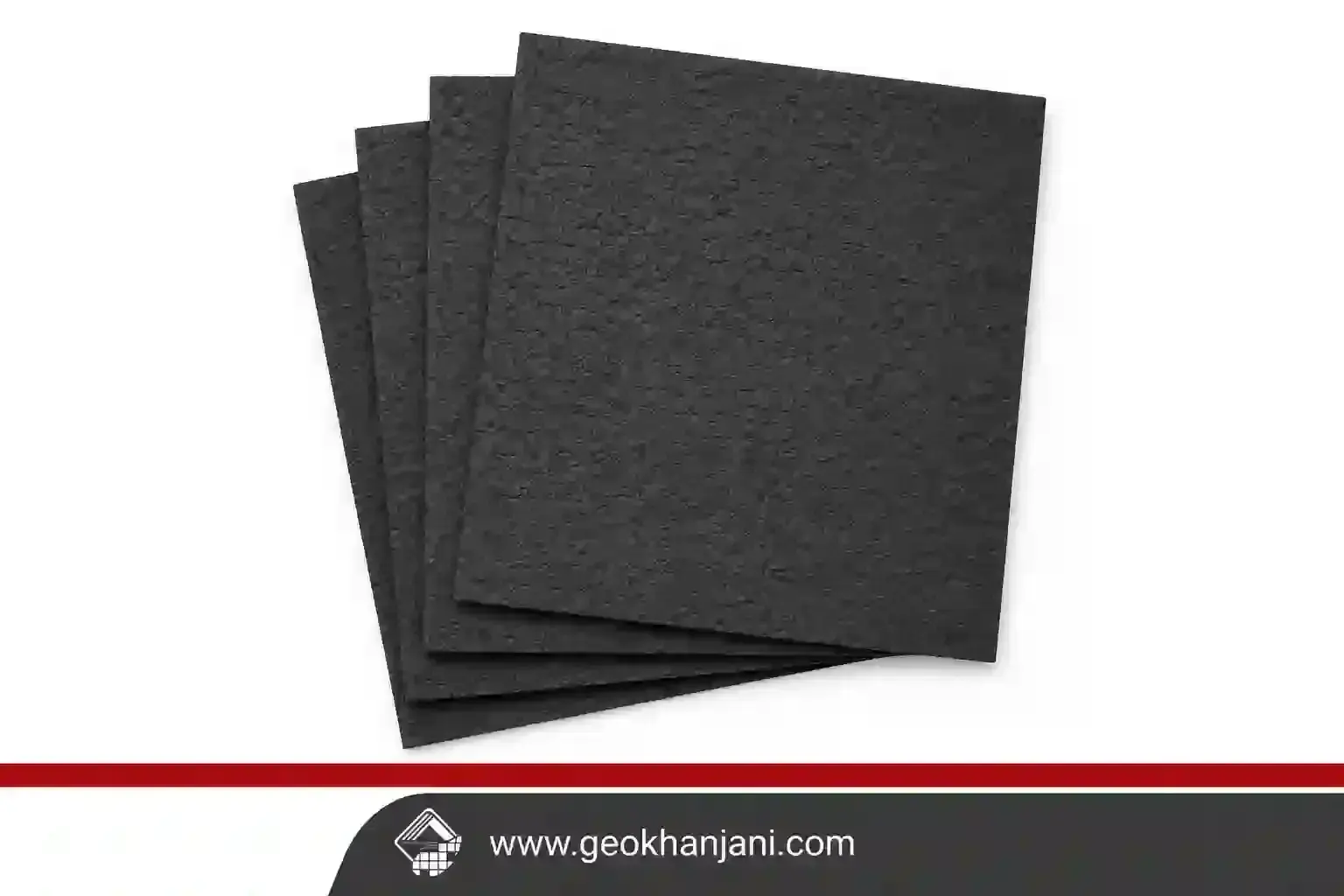

Textured Geomembrane is a high-performance synthetic liner designed to provide exceptional containment while offering increased surface friction. Unlike smooth geomembranes, textured geomembranes feature an engineered rough surface that improves stability on slopes and enhances interaction with surrounding soils.
Manufactured from premium polyethylene resins such as HDPE (High-Density Polyethylene) or LLDPE (Linear Low-Density Polyethylene), textured geomembranes combine excellent chemical resistance, UV stability, and long service life with superior interface shear strength. They are widely used in demanding civil, environmental, mining, and hydraulic engineering projects where slope stability and reliable impermeability are critical.
Key Features
* High friction surface for improved slope stability
* Excellent impermeability against liquids and contaminants
* Superior chemical and corrosion resistance
* Outstanding UV and weather resistance
* High tensile strength and puncture resistance
* Long service life with minimal maintenance
* Excellent resistance to environmental stress cracking (ESCR)
* Available in single-sided or double-sided textured surfaces
* Suitable for exposed and buried applications
* Manufactured in various thicknesses and roll dimensions
Applications
Textured geomembranes are commonly used in a wide range of containment and waterproofing projects, including:
* Landfill lining systems
* Mining heap leach pads
* Tailings storage facilities
* Reservoirs and water ponds
* Irrigation canals
* Wastewater treatment plants
* Secondary containment systems
* Oil and gas containment areas
* Tunnel and foundation waterproofing
* Slope protection projects
* Industrial lagoons
* Environmental remediation projects
Advantages
* Increases interface friction between the liner and adjacent materials
* Reduces the risk of sliding on steep slopes
* Improves overall system stability
* Provides reliable long-term waterproofing performance
* Performs well under harsh environmental conditions
* Resistant to aggressive chemicals and hazardous waste
* Easy to weld using standard geomembrane welding techniques
* Low maintenance throughout its service life
Available Types
Textured geomembranes are typically available in:
* HDPE Textured Geomembrane
* LLDPE Textured Geomembrane
* Single-Sided Textured Geomembrane
* Double-Sided Textured Geomembrane
Technical Characteristics
Typical properties include:
* Thickness: 0.75 mm to 3.00 mm
* Surface: Single or double textured
* Color: Black (other colors available upon request)
* Excellent tensile strength
* High elongation at break
* Outstanding puncture resistance
* Excellent tear resistance
* Superior environmental stress crack resistance
* UV stabilized with carbon black formulation
* Manufactured according to GRI GM13 and ASTM standards
Similar Products
If your project requires a different type of geomembrane, you may also consider:
- * Smooth HDPE Geomembrane
- * Smooth LLDPE Geomembrane
- * PVC Geomembrane
- * Reinforced Polypropylene (RPP) Geomembrane
- * EPDM Geomembrane
- * VLDPE Geomembrane
- * Geotextile
- * Geocomposite Drainage Systems
- * Geocells
- * Geogrids
Why Choose Textured Geomembrane?
Textured geomembranes are the preferred solution for projects where both impermeability and slope stability are essential. Their rough surface significantly improves friction with soil, geotextiles, and other construction materials, reducing the risk of liner movement even on steep embankments.
Combined with outstanding chemical resistance, mechanical durability, and long-term weather performance, textured geomembranes provide a reliable and cost-effective solution for demanding environmental, mining, agricultural, and civil engineering applications.
frequently asked question
A textured geomembrane is a synthetic impermeable liner with a rough surface designed to increase friction, improve slope stability, and provide reliable containment in demanding engineering projects.
The main difference is the surface finish. Smooth geomembranes have a flat surface, while textured geomembranes feature a rough surface that provides higher interface friction and better performance on slopes.
They are widely used in landfills, mining operations, reservoirs, canals, wastewater treatment plants, tailings ponds, secondary containment systems, and environmental protection projects.
Most textured geomembranes are manufactured from high-quality HDPE (High-Density Polyethylene) or LLDPE (Linear Low-Density Polyethylene) resins.
