Isolation and Foundation Drainage: Waterproofing and Drainage Solutions for Building Foundations
Isolation and foundation drainage refers to a combination of waterproofing, moisture protection, and drainage solutions designed to protect building foundations and underground structures from water infiltration, groundwater, soil moisture, and hydrostatic pressure.
Foundations are continuously exposed to moisture from surrounding soil, rainfall, groundwater, and surface water. If that water isn't properly controlled, it can gradually work its way through cracks, joints, porous concrete, and other vulnerable areas of the structure.
Water infiltration around foundations can lead to a range of problems: damp walls and floors, water leakage into basements, concrete deterioration, corrosion of reinforcement, mold and unpleasant odors, hydrostatic pressure, damage to interior finishes, and reduced durability of the structure overall.
For this reason, foundation waterproofing shouldn't be treated as separate from drainage. A reliable underground protection system usually combines waterproofing, isolation, drainage, and protective layers to control water before it ever reaches the building structure.
GeoKhanjani provides professional solutions for foundation isolation and drainage using geosynthetic materials such as geomembrane, geotextile, and geodrain, tailored to what each project needs.
Why Is Foundation Waterproofing Important?
The foundation is one of the most critical parts of any building. Once underground water reaches it, removing that water can become difficult and expensive.
Traditional waterproofing methods don't always provide enough protection, particularly in areas with high groundwater levels or heavy rainfall.
A properly designed isolation system creates a continuous barrier between the foundation and the surrounding soil, with the goal of preventing water from reaching the foundation, controlling groundwater around the structure, reducing hydrostatic pressure, directing excess water toward drainage points, protecting the waterproofing layer from mechanical damage, and increasing the service life of the underground structure.
The most effective approach is generally to combine waterproofing and drainage rather than relying on waterproofing alone.
What Is Foundation Isolation?
Foundation isolation is the process of building a protective barrier around the underground parts of a structure to prevent direct contact between the building and moisture or groundwater in the surrounding soil.
This protective system can include different layers and materials depending on the project. A typical foundation isolation setup may include the foundation wall itself, a waterproofing layer, geomembrane, a protective geotextile, a geodrain or drainage board, a drainage pipe, a filter layer, and backfill material.
The exact configuration should be chosen based on soil conditions, groundwater level, foundation depth, building type, and expected water pressure.
The Role of Geomembrane in Foundation Isolation
One of the most important materials for foundation waterproofing is geomembrane — a synthetic, low-permeability membrane designed to block the movement of liquids through soil and construction interfaces.
When properly installed around a foundation, geomembrane can act as a continuous waterproofing barrier, helping keep groundwater and soil moisture away from the foundation wall.
Its key advantages include very low permeability, effective water containment, high resistance to moisture, good mechanical performance, flexibility across different applications, suitability for large waterproofing surfaces, and a long service life when properly selected and installed.
For underground structures, choosing the right geomembrane type and thickness matters. Depending on project conditions, HDPE or LLDPE geomembranes may be considered for waterproofing and isolation applications.
Foundation Drainage: Why Is It Necessary?
Waterproofing alone doesn't always solve every underground water problem. Even when a waterproofing membrane is installed correctly, groundwater can still accumulate around the foundation, and this can create hydrostatic pressure against the foundation wall.
A drainage system is designed to collect and safely remove this water. The basic principle is simple: waterproofing prevents water from entering the structure, while drainage controls and removes water around the structure.
This combination matters especially for basements, underground parking areas, retaining walls, foundation walls, tunnels, underground utility structures, and industrial, residential, and commercial buildings alike.
Geodrain is a geosynthetic drainage product used to collect and direct water along foundation walls and other underground structures.
A geodrain system creates a controlled drainage path between the soil and the waterproofed structure. Instead of letting water sit in direct contact with the foundation, the drainage layer helps move excess water toward a designated drainage system.
Depending on the product, geodrain systems may also provide separation and protection for the waterproofing layer — which is why it's particularly useful when combined with geomembrane in foundation waterproofing systems.
Geotextile Protection for Foundation Waterproofing
Another important component of a foundation isolation and drainage system is geotextile.
During backfilling, stones, construction debris, and soil particles can press against the waterproofing membrane, and direct contact with sharp materials can damage the geomembrane.
A protective geotextile layer acts as a cushioning and separation layer. It helps protect the geomembrane from puncture, reduces abrasion, separates soil from drainage layers, improves filtration, and prevents fine soil particles from clogging drainage pathways.
The right geotextile type and weight should be chosen based on project conditions and expected mechanical stresses.
How Does a Foundation Isolation and Drainage System Work?
A properly designed system typically works in stages.
First comes waterproofing: the foundation wall is protected using an appropriate waterproofing system, which may include geomembrane. This layer acts as the primary barrier against water infiltration.
Next is protection: a protective geotextile layer can be installed to shield the waterproofing membrane against mechanical damage.
Then comes drainage: a geodrain or drainage board is installed to create a pathway for water.
After that is collection: water reaching the drainage layer is gathered and directed toward a perforated drainage pipe or a designated drainage outlet
Finally, discharge: collected water is safely released to an appropriate drainage point, sump system, collection tank, or other approved outlet.
Together, this creates an integrated system where water is kept out of the building while excess groundwater is actively managed.
Isolation and Foundation Drainage for Basements
Basements are particularly vulnerable to water infiltration because they sit below ground level. Groundwater and rainwater can build up around basement walls and create significant pressure.
Without proper waterproofing and drainage, water can find its way in through wall joints, construction joints, cracks, pipe penetrations, floor-wall connections, concrete pores, or structural openings.
A properly designed basement waterproofing system can combine geomembrane, geotextile, geodrain, drainage pipes, and other components for comprehensive protection.
Ideally, this system should be designed before construction or excavation begins, since access to underground walls becomes much harder once backfilling is done.
Foundation Drainage for Retaining Walls
Retaining walls are also exposed to water pressure from the soil behind them. If water builds up behind a retaining wall, the resulting pressure can end up significantly greater than what dry soil alone would create.
A drainage system helps control this. A typical setup runs from the retaining wall through a waterproofing or geomembrane layer, a protective geotextile, a geodrain, a drainage pipe, and finally an outlet — letting water move away from the wall instead of collecting behind it.
Benefits of Professional Foundation Isolation and Drainage
A professionally designed system delivers several real benefits.
It reduces water infiltration, since the waterproofing layer keeps groundwater and soil moisture from entering the building. It reduces hydrostatic pressure, because the drainage system removes water that would otherwise accumulate around the foundation. It protects concrete, since less long-term moisture exposure means less deterioration of concrete and other construction materials.
It also lowers the risk of basement leakage, thanks to continuous waterproofing paired with effective drainage. It extends service life, contributing to the long-term durability of the building. It makes maintenance easier, since a planned drainage system gives water a controlled path and simplifies future inspection. And it protects the waterproofing layer itself — geotextile and geodrain shield the geomembrane from mechanical damage during backfilling and ongoing operation.
Common Problems Without Proper Foundation Drainage
Ignoring foundation drainage can lead to serious long-term problems.
Groundwater can accumulate around the foundation and increase moisture exposure. Continuous water buildup can create pressure against underground walls. Moisture can migrate into basement walls and floors, creating conditions favorable for mold and unpleasant odors. Long-term moisture exposure can contribute to concrete deterioration depending on materials and environmental conditions, and water penetration can raise the risk of reinforcement corrosion where steel becomes exposed to moisture and aggressive agents.
On top of all that, repairing an underground waterproofing system after construction and backfilling is generally far more difficult and costly than getting it right during initial construction.

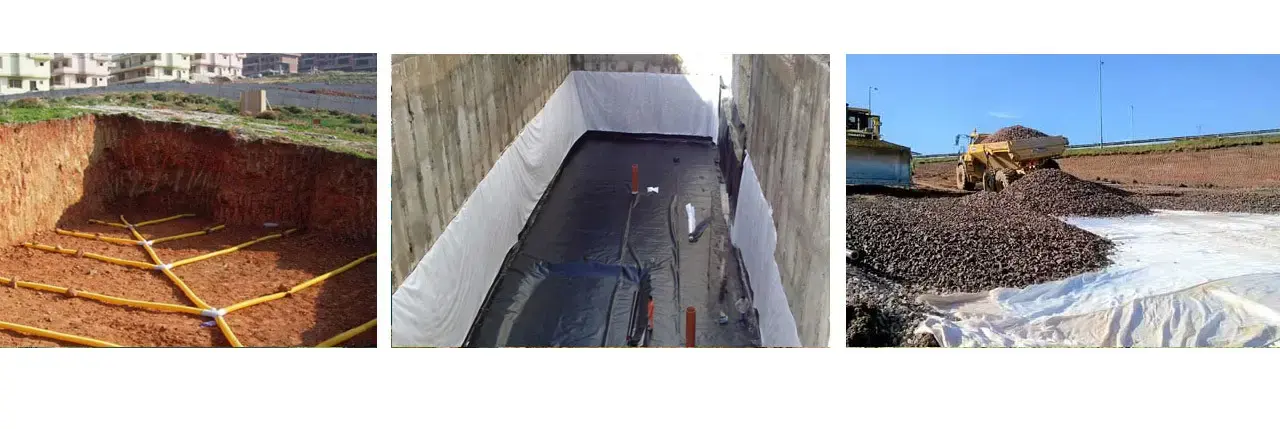

Foundation Isolation and Drainage Construction Process
A professional installation generally moves through several stages.
It starts with a site and soil assessment, evaluating factors like soil type, groundwater level, foundation depth, rainfall, drainage conditions, wall geometry, expected water pressure, and backfill characteristics before selecting the waterproofing and drainage system.
Next is foundation surface preparation — cleaning the surface and removing sharp projections or debris that could damage the waterproofing system.
Then comes geomembrane installation according to the project design, with sheets joined using suitable welding techniques where multiple sheets are needed.
Seam inspection follows, checking and testing welded seams against the project's quality-control requirements.
After that, a protective geotextile layer may be installed to reduce the risk of mechanical damage, followed by geodrain installation along the foundation wall to create a controlled pathway for water movement.
A suitable perforated drainage pipe can then be installed at the base of the foundation where needed, sloped appropriately toward the discharge point.
Filter materials and backfill go in next, with care taken not to damage the waterproofing and drainage system already in place.
Finally, a full inspection of the completed system is carried out before final backfilling and closure.
Why Choose GeoKhanjani for Foundation Isolation and Drainage?
GeoKhanjani provides professional solutions for foundation isolation and drainage using modern geosynthetic materials and waterproofing systems.
Our services can be adapted to the specific conditions of residential, commercial, industrial, and infrastructure projects. Depending on what a project requires, the system can include geomembrane waterproofing, geotextile protection, geodrain drainage systems, foundation waterproofing, underground structure isolation, drainage layer installation, water management around foundations, geomembrane welding and installation, and protection of waterproofing systems during backfilling.
The goal isn't simply to install a waterproofing membrane — it's to design and build an integrated waterproofing and drainage system that manages water from the moment it approaches the foundation until it's safely carried away from the area.
GeoKhanjani's Approach to Foundation Waterproofing
At GeoKhanjani, every project is evaluated according to its actual site conditions. There's no single waterproofing or drainage solution that works ideally for every building.
Factors like groundwater, soil permeability, foundation depth, wall structure, rainfall, drainage availability, and project requirements are all taken into account. Based on those conditions, the right combination of geomembrane, geotextile, geodrain, and drainage components can be selected.
Professional installation matters just as much as material choice. Even a high-quality geomembrane can underperform if the substrate is poorly prepared, seams are improperly welded, or the membrane gets damaged during backfilling.
That's why material selection, installation, welding, protection, inspection, and drainage design are all treated as parts of one integrated system, not separate line items.
Where Can GeoKhanjani's Services Be Used?
Foundation isolation and drainage solutions can be applied across a wide range of projects, including residential buildings, commercial buildings, industrial facilities, underground parking structures, basements, retaining walls, underground warehouses, water-related infrastructure, tunnels and underground structures, and industrial and utility facilities.
Each application may call for a different combination of waterproofing and drainage layers.
Isolation and foundation drainage is an essential part of protecting underground structures against groundwater, soil moisture, rainwater, and hydrostatic pressure.
A reliable system combines waterproofing and drainage rather than depending on a single layer. Geomembrane provides an effective waterproofing barrier, geotextile protects the membrane while providing filtration and separation, and geodrain creates a controlled pathway for collecting and carrying excess water away from the foundation.
When these components are correctly designed and professionally installed, they can significantly improve the protection and long-term performance of underground structures.
GeoKhanjani offers professional foundation isolation and drainage services using geomembrane, geotextile, geodrain, and related geosynthetic solutions. From selecting the right materials to installation, geomembrane welding, protection, and drainage implementation, GeoKhanjani can provide an integrated solution tailored to the specific requirements of each project.
For buildings and underground structures where water protection is critical, investing in a properly engineered foundation waterproofing and drainage system can help prevent costly moisture problems and provide long-term protection for the structure.
