What Is a Geomembrane Welding Machine?

A Geomembrane Welding Machine is a specialized device designed for joining thermoplastic geomembrane sheets through a controlled heat welding process. Materials like HDPE, LDPE, PVC, TPO, and other thermoplastic membranes cannot be effectively bonded with traditional adhesives, so thermal welding remains the most reliable method for creating strong and waterproof connections.

These machines use controlled heat and pressure to melt the surface of the geomembrane sheets and form a permanent molecular bond. The result is a durable seam that resists water pressure, environmental conditions, and mechanical stress.

Geomembrane welding machines are widely used in waterproofing projects, agricultural ponds, landfill liners, mining applications, wastewater treatment plants, reservoirs, and hydraulic engineering projects.

How Does a Geomembrane Welding Machine Work?

The welding process relies on the principle of thermal fusion. The machine heats the surface of two overlapping geomembrane sheets until they reach melting temperature. Controlled pressure is then applied to join the melted surfaces and create a uniform welded joint.

The main stages are:

Heating the membrane surface

The device raises the temperature of the geomembrane edges until the polymer reaches a suitable melting point.

Applying controlled pressure

The heated surfaces are pressed together to form a strong molecular connection.

Cooling and solidification

Once cooled, the welded area becomes a continuous, leak-resistant seam.

This process produces a connection whose strength is close to that of the original geomembrane sheet.

Types of Geomembrane Welding Machines

Depending on project requirements and the welding method, several types of equipment are available:

1. Hot Wedge Welding Machine

Hot wedge welding machines are among the most common solutions for large-scale geomembrane installation.

Features:

Creates strong double-track welding seams

Includes an air pressure testing channel between the seams

Suitable for HDPE and other thermoplastic membranes

Delivers fast and consistent welding performance

Applications:

Landfill liners

Large agricultural ponds

Mining containment systems

Water reservoirs

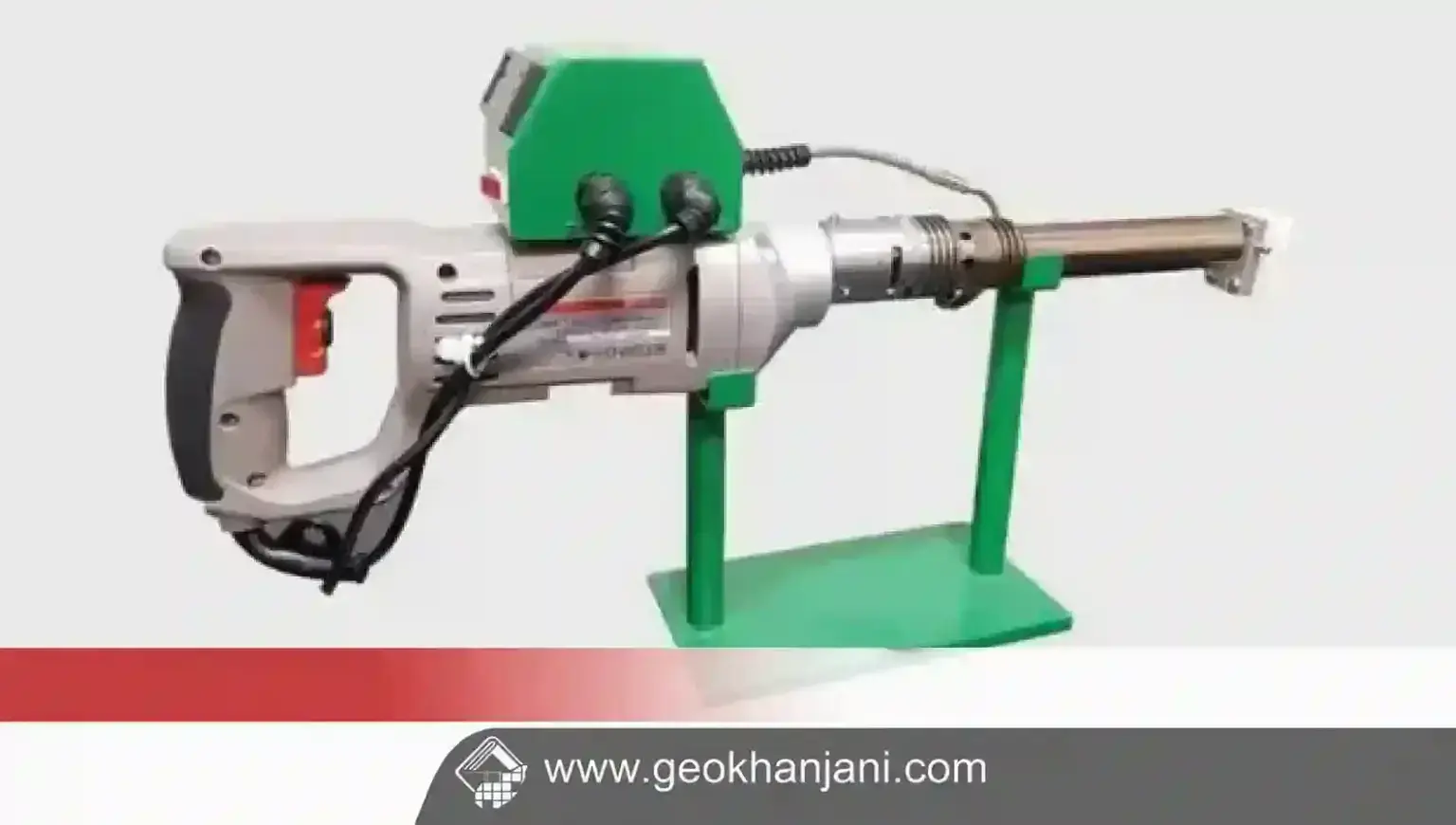

2. Extrusion Welding Machine

Extrusion welding machines use a heated plastic welding rod made from compatible polymer to join geomembrane sheets.

Advantages:

Suitable for detailed welding areas

Ideal for corners, pipes, and complex connections

Produces highly durable welds

Useful for repair work

Common applications:

HDPE tank welding

Pipe connections

Small repair jobs

Complex geomembrane structures

3. Hot Air Welding Machine

Hot air welding equipment uses heated air to soften membrane surfaces before pressure is applied.

Applications:

PVC geomembrane welding

Small repairs

Edge welding

Waterproofing details

Advantages of Using a Geomembrane Welding Machine

Professional welding equipment offers several important benefits:

Strong and Permanent Connections

Thermal welding creates a molecular bond between polymer sheets that is much stronger than mechanical fastening or adhesive methods.

Complete Waterproofing Performance

Properly welded seams prevent water leakage and ensure the reliability of geomembrane containment systems.

High Resistance Against Environmental Conditions

Welded joints can withstand UV exposure, temperature changes, chemical materials, soil pressure, and water pressure.

Faster Installation

Professional machines allow installers to cover large areas quickly, reducing project time and labor costs.

Improved Quality Control

Modern equipment provides adjustable temperature and speed control, helping operators achieve consistent seam quality.

Applications of Geomembrane Welding Machines

These machines are used across many industries:

Agricultural Water Storage

For installing waterproof liners in irrigation ponds, reservoirs, and farming water storage systems.

Landfill and Waste Management

For welding landfill liners that prevent soil and groundwater contamination.

Mining Projects

To create reliable containment systems for mining ponds and chemical storage areas.

Wastewater Treatment Plants

For waterproofing treatment ponds and industrial water containment structures.

Construction Waterproofing

Suitable for foundations, tunnels, underground structures, and protective waterproofing systems.

Aquaculture Projects

Used in fish farming ponds and artificial water environments.

Important Factors When Choosing a Geomembrane Welding Machine

Selecting the right machine depends on several factors:

Type and Thickness of Geomembrane

Different membranes and thicknesses require specific welding temperatures and speeds.

Welding Method

Large projects usually need automatic hot wedge welding machines, while detailed areas often require extrusion welders.

Temperature and Speed Control

A quality machine should offer accurate control over welding temperature, speed, and pressure.

Project Size

For large-scale projects, automatic welding equipment provides higher productivity and better seam consistency.

Welding Methods for Geomembrane Installation

The most common methods include:

Hot Wedge Welding

A heated wedge melts the membrane surfaces and creates a continuous seam under pressure.

Extrusion Welding

A heated polymer welding rod is added between membrane layers to form a strong connection.

Hot Air Welding

Hot air softens the membrane surface before pressure is applied.

Each method is chosen based on membrane type, project conditions, and the required seam performance.

Maintenance Tips for Geomembrane Welding Machines

To ensure long-term performance:

• Clean welding components after each use
• Check heating elements regularly
• Maintain correct temperature settings
• Inspect pressure rollers and mechanical parts
• Store the machine in a dry and protected environment

Regular maintenance improves welding quality and extends the equipment’s lifespan.

A Geomembrane Welding Machine is an essential tool for creating reliable, waterproof, and long-lasting connections between thermoplastic membrane sheets. By using controlled heat and pressure, these machines produce strong seams suitable for demanding applications such as reservoirs, landfills, mining projects, and waterproofing systems.

Choosing the right welding equipment based on membrane type, project size, and welding method leads to higher installation quality, lower leakage risks, and better long-term performance.
