Geomembrane vs. Bituminous Waterproofing

Geomembrane vs. Bituminous Waterproofing: Which One Is Right for Your Project?

Waterproofing isn't a one-size-fits-all solution. The material that works well on a building roof may not be the right choice for a large agricultural pond, water reservoir, or engineered containment area.

Two waterproofing solutions that often get compared are geomembranes and bituminous waterproofing systems such as bitumen membranes. Although both are designed to limit water penetration, they differ significantly in material composition, installation techniques, service conditions, and typical applications.

The right choice depends less on which material is generally "better" and more on where the waterproofing system will be installed and what it's expected to withstand.

This guide walks through the practical differences between geomembranes and bituminous waterproofing and helps figure out which solution makes more sense for different types of projects.

Understanding the Difference Between the Two Systems

Before comparing their performance, it helps to understand that geomembranes and bituminous membranes belong to different waterproofing categories.

A geomembrane is a synthetic polymeric liner manufactured specifically to provide extremely low permeability. Common geomembrane materials include HDPE, LLDPE, PVC, and other polymer formulations. They're widely used in agricultural ponds, water reservoirs, irrigation canals, industrial containment areas, wastewater facilities, landfill systems, and secondary containment applications.

Bituminous waterproofing, on the other hand, generally consists of a reinforced membrane containing bitumen. Depending on the product, the membrane may incorporate fiberglass, polyester reinforcement, polymers, and protective surface layers. Bituminous membranes are commonly associated with building waterproofing applications such as roofs, basements, terraces, foundations, balconies, and selected below-grade structures.

The difference in their typical applications is one of the most important points to consider when choosing between them.

Where Does Each Waterproofing System Work Best?

Instead of comparing the two materials only by their physical properties, it's more useful to look at the environment where they'll actually be installed.

Building Roofs

For conventional building roofs, bituminous waterproofing is a well-established solution. A roof waterproofing system has to deal with rainfall, sunlight, temperature changes, drainage details, penetrations, parapets, and regular maintenance requirements, and bituminous membranes are designed for exactly these kinds of building details, integrating well with other roofing components.

A geomembrane can provide a waterproof barrier, but that doesn't automatically make it the most practical choice for every roof. Roof design, fixing methods, surface exposure, detailing, drainage, and compatibility with the roofing system all need to be evaluated.

The practical takeaway: for a conventional roof, a properly designed bituminous waterproofing system may be more appropriate than treating a geomembrane as a direct replacement.

Agricultural Ponds and Water Reservoirs

The situation changes significantly when the project involves a large excavated pond. Agricultural ponds are often built directly in soil, and uncontrolled seepage can result in considerable water loss — this is where geomembranes have a major advantage as an engineered lining system.

A geomembrane can cover the bottom and side slopes of a pond, creating a continuous low-permeability barrier once the individual panels are properly welded. For large water-storage projects, important considerations include pond dimensions, soil conditions, slope geometry, liner thickness, seaming method, UV exposure, mechanical protection, and subgrade preparation.

The practical takeaway: for many large agricultural ponds, geomembrane lining is a more natural application than conventional bituminous roofing membranes.

Basements and Below-Grade Structures

Basement waterproofing presents a different set of challenges. Water may reach the structure through hydrostatic pressure, groundwater, construction joints, cracks, wall penetrations, or floor-wall connections.

Bituminous waterproofing systems are widely used in building foundations and below-grade applications, but the correct solution depends on whether the membrane is installed externally, internally, beneath the slab, or as part of a larger waterproofing and drainage system.

A geomembrane may also be built into specialized engineering systems, but it shouldn't automatically be treated as a direct substitute for a building waterproofing membrane.

Industrial and Environmental Containment

One of the areas where geomembranes become particularly important is containment. Industrial facilities may need to control the movement of liquids or prevent potentially harmful substances from entering surrounding soil — think industrial ponds, wastewater treatment areas, secondary containment, leachate management, landfill liners, and process-water reservoirs.

In these applications, the selection process involves more than just waterproofing. Chemical compatibility, permeability, seam integrity, puncture resistance, temperature, and exposure conditions can all become critical design considerations. A geomembrane selected for a landfill application, for instance, needs to be compatible with the expected chemical and environmental conditions.

The material itself plays a big role in how the waterproofing system behaves.

Geomembranes are manufactured from polymeric materials, and their formulation determines properties like flexibility, chemical resistance, tensile behavior, environmental resistance, weldability, and resistance to puncture and tearing. Different polymers behave differently, so it's incorrect to treat every geomembrane as having identical performance — an HDPE geomembrane and an EPDM liner shouldn't be considered interchangeable products just because both are classified as geomembranes.

Bituminous membranes use bitumen as their primary waterproofing component and may contain reinforcement layers. Their performance depends on factors like bitumen formulation, reinforcement type, polymer modification, membrane thickness, surface finish, and installation quality. This means the term "bituminous membrane" also covers a range of products rather than one standardized material.

Installation: A Major Difference

The installation process is another major distinction between the two systems.

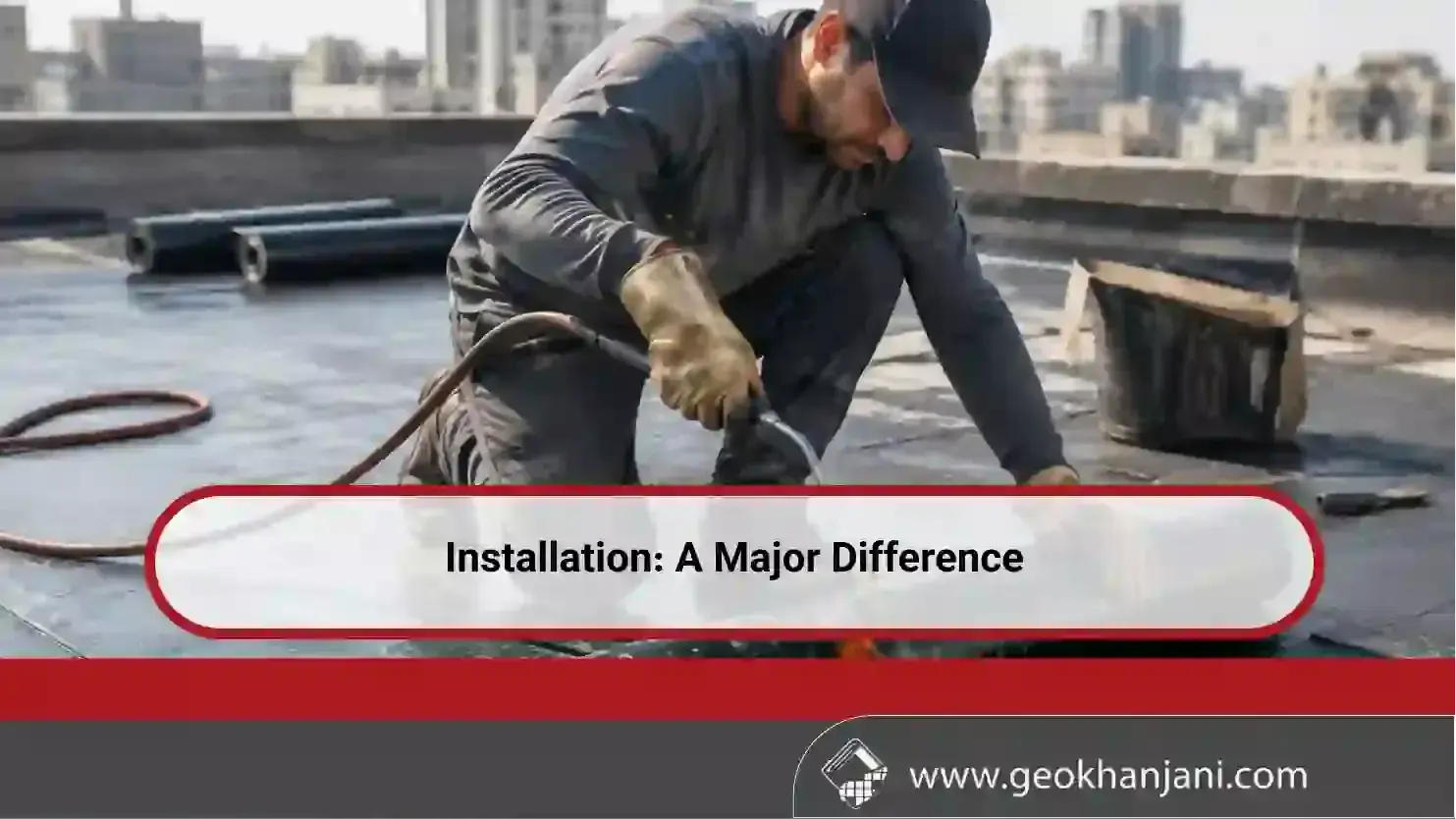

Bituminous membranes, depending on the product, may be installed using methods such as torch application, hot bonding, cold adhesives, or mechanical fixing. The installer has to pay particular attention to overlaps, corners, drainage points, expansion areas, penetrations, roof edges, and wall-floor transitions — poorly executed joints can become weak points in the system.

Geomembrane installation generally involves deploying large sheets across the prepared surface and joining adjacent panels. For many thermoplastic geomembranes, seams are created using specialized thermal welding equipment, which makes seam quality a critical part of the installation process. A professional geomembrane installation should include appropriate inspection and quality-control procedures for the welded seams.

The success of the system depends not only on the liner itself but on material quality, subgrade preparation, deployment, welding, and inspection all working together.

Installation: A Major Difference

Why Subgrade Preparation Is Critical for Geomembranes

One of the most important aspects of geomembrane installation is the condition of the surface underneath the liner. A liner may be technically suitable for a project but still suffer damage if it's installed over an unsuitable surface.

For an excavated pond, the subgrade should be checked for sharp rocks, roots, metal debris, construction waste, excessive irregularities, and anything else that could puncture the liner.

Depending on the project design, a geotextile protection layer may also be considered beneath the geomembrane — especially where the underlying soil presents a significant risk of mechanical damage.

Which System Handles Large Areas More Efficiently?

Project scale can strongly influence the choice of waterproofing technology. A small building roof and a 10,000-square-meter agricultural reservoir present completely different installation challenges.

Large geomembrane projects are typically built around large rolls or panels that are deployed over the prepared area and then welded together — an approach that works particularly well for large ponds, reservoirs, containment areas, landfill systems, and industrial basins.

Bituminous membranes can also cover substantial areas, but their typical application and installation methodology are more closely tied to building construction.

So project scale should be considered together with the nature of the substrate and the expected service conditions.

Durability: Which One Lasts Longer?

There's no universal answer. The service life of a waterproofing system depends on much more than the material category.

For geomembranes, important factors include polymer type, thickness, raw material quality, UV exposure, installation quality, seam quality, mechanical protection, and chemical exposure. For bituminous systems, performance can be affected by membrane formulation, reinforcement, installation quality, temperature fluctuations, UV exposure, surface movement, drainage conditions, and mechanical damage.

A high-quality product installed incorrectly can perform worse than a properly selected product installed according to the manufacturer's requirements. Installation quality should really be treated as part of the waterproofing system itself, not an afterthought.

Cost Should Be Evaluated at Project Level

Comparing the purchase price of one square meter of geomembrane with one square meter of bituminous membrane doesn't give you a complete cost comparison.

The total project cost may include material, surface preparation, transportation, labor, equipment, welding or installation, protection, inspection, and maintenance.

For a large agricultural pond, for example, the total cost of a geomembrane system may involve excavation preparation, subgrade treatment, liner transportation, deployment, welding, testing, and protective layers. For a building roof, the cost calculation may include substrate preparation, membrane installation, detailing around penetrations, drainage components, and finishing layers.

So the right question isn't which material has the lower price per square meter — it's which waterproofing system provides the most suitable overall solution for the project's conditions and lifecycle requirements.

Geomembrane vs. Bituminous Membrane: A Practical Comparison

Looking at the two side by side: geomembrane is built on a synthetic polymer base, while bituminous waterproofing is bitumen-based. Geomembrane typically comes as a flexible sheet liner; bituminous waterproofing comes as a membrane.

For agricultural ponds, geomembrane is highly applicable while bituminous waterproofing is less common. For building roofs, it's the reverse — geomembrane use is project-dependent while bituminous waterproofing is highly common. For soil-based applications and large containment areas, geomembrane is highly applicable and bituminous waterproofing is generally less suitable or less typical.

On seam technology, geomembrane commonly relies on thermal welding, while bituminous membrane seaming depends on the specific product. Chemical resistance in both cases depends on the formulation or polymer used, and both are highly sensitive to subgrade conditions and require specialized installation expertise.

For typical building applications, geomembrane use is limited and specialized while bituminous waterproofing is extensive. For large water reservoirs, it's the opposite — geomembrane is a common application while bituminous waterproofing is less typical.

This comparison is general. Specific products should always be evaluated according to their technical specifications and intended application.

What About Swimming Pools?

Swimming pools require a different approach from agricultural reservoirs. A concrete swimming pool may need a waterproofing system that works together with structural concrete, tiles or finishes, expansion joints, pipe penetrations, drainage components, and pool fittings.

In some projects, specialized liquid or cementitious waterproofing systems may be more appropriate. Geomembranes can also be used in certain pool designs, but their suitability depends on the construction method and finishing requirements.

This is why the word "pool" alone isn't enough to determine the best waterproofing system — the construction type has to be identified first.

Five Questions to Ask Before Choosing a Waterproofing System

Before purchasing any waterproofing material, it's worth asking a few questions.

What is the substrate — concrete, soil, masonry, metal, or another surface? What is the primary exposure — will the system face rain, groundwater, permanent water pressure, chemicals, or wastewater? How large is the area, since large engineered containment projects may need a different approach than small building surfaces? How will the joints be created, since seam and connection quality can matter just as much as the membrane itself? And how will the completed system be inspected — a waterproofing project should include proper quality-control procedures rather than relying only on visual inspection.

When Should You Choose a Geomembrane?

A geomembrane deserves serious consideration when the project involves a large agricultural pond, a water-storage reservoir, a lined irrigation channel, an industrial containment area, a wastewater-related application, a landfill or environmental containment system, or any large soil-based waterproofing surface.

In these situations, the project is closer to engineered containment than conventional building waterproofing.

When Is Bituminous Waterproofing More Appropriate?

A bituminous waterproofing system tends to be more suitable for conventional roofing, building foundations, basements, terraces, selected building waterproofing applications, and projects where the membrane needs to integrate with established building details.

Again, the specific product and installation system should match the project's actual requirements.

Final Verdict: Geomembrane or Bituminous Waterproofing?

There's no universal winner between geomembranes and bituminous waterproofing — they're designed around different application environments.

For building-related waterproofing, particularly conventional roofs and selected below-grade structures, bituminous systems remain a practical and widely used option. For large-scale water containment and engineered lining applications — agricultural ponds, reservoirs, industrial basins, and certain environmental projects — geomembranes offer a highly relevant solution.

The best decision should be based on the application, the substrate, the exposure, the project size, the material specifications, the installation quality, and the total project cost.

Rather than asking which product is better in general, project owners should first define the actual waterproofing challenge and then select a system designed to handle those conditions.

For projects involving geomembrane installation, choosing the correct polymer type, thickness, protection system, welding method, and installation procedure can have a major impact on the liner's long-term performance.

Ultimately, a successful waterproofing system isn't simply a sheet or membrane. It's a complete system in which material selection, preparation, installation, seam quality, and quality control all work together.
