Jet Grouting for Ground Improvement: Design, Applications & Process

Jet Grouting for Ground Improvement: Design, Construction, Applications and Quality Control

Jet grouting is a specialized ground improvement technology used to modify the engineering properties of soil directly beneath the ground surface. By combining high-energy fluid jets with cementitious grout, the technique creates soil-cement elements with controlled strength, stiffness, and permeability.

Unlike conventional excavation and replacement methods, jet grouting treats the existing ground in place. This makes it particularly useful where construction takes place close to existing buildings, beneath foundations, inside restricted sites, or below groundwater levels.

The performance of a jet-grouted system depends on much more than injection pressure. Soil characteristics, nozzle configuration, grout properties, rod movement, and construction sequencing all influence the final geometry and mechanical properties of the treated ground.

The Engineering Principle of Jet Grouting

The basic concept behind jet grouting is to use a high-energy jet to interact with the soil surrounding a drilled borehole.

A drilling rod equipped with a special monitor is first advanced to the required treatment depth. Once the target elevation is reached, the injection system is activated. High-velocity fluids exit through small nozzles and interact with the surrounding ground.

Depending on the selected system, the jet can erode part of the soil structure, displace soil, break down soil aggregates, mix soil with cement grout, and ultimately create a controlled soil-cement body.

The injection monitor is then rotated and withdrawn at predetermined rates. This movement progressively creates the required treated element.

After curing, the resulting material behaves differently from the original soil and can offer improved shear strength, stiffness, and resistance to water flow.

How Is Jet Grouting Constructed?

A typical jet grouting operation moves through several construction stages.

Before drilling begins, the working platform, equipment access, and existing underground utilities need to be evaluated, and the location of each treatment point is established according to the engineering drawings.

Drilling then proceeds through the soil profile — a relatively small-diameter borehole is drilled until the required treatment elevation is reached, with the drilling method and equipment depending on ground conditions and project depth.

At the target depth, grout or a combination of water, air, and grout is injected through the monitor nozzles. The jetting parameters are chosen according to the required treatment geometry and how the soil is expected to respond.

The monitor is then slowly raised while rotating. The relationship between withdrawal rate, rotation speed, injection flow, injection pressure, and nozzle size has a direct influence on the treated diameter and quality.

Once injection is complete, the cementitious material begins to harden. The final soil-cement element can subsequently be evaluated through appropriate quality-control procedures.

Jet Grouting Systems

Jet grouting is one of the Soil Ground Improvement Methods for strengthening and stabilizing weak or problematic soils.

Three primary jet grouting configurations are commonly used.

The single-fluid system uses cement grout as the primary jetting medium. The grout is pumped through the injection nozzles at high pressure and performs both the soil erosion and binding functions. Its relatively straightforward equipment configuration makes it suitable for a wide range of ground improvement applications.

The double-fluid system introduces compressed air in addition to grout. The surrounding air envelope increases the efficiency of the jet and can improve its interaction with the surrounding soil. This configuration may be selected when larger treatment diameters are required.

The triple-fluid system separates the erosion and cementation functions. A typical arrangement uses high-pressure water for soil erosion, compressed air to improve jet efficiency, and cement grout for forming the treated body. Because these functions are separated, the system offers greater flexibility in controlling the treatment process — though it also requires more sophisticated equipment and tighter operational control.

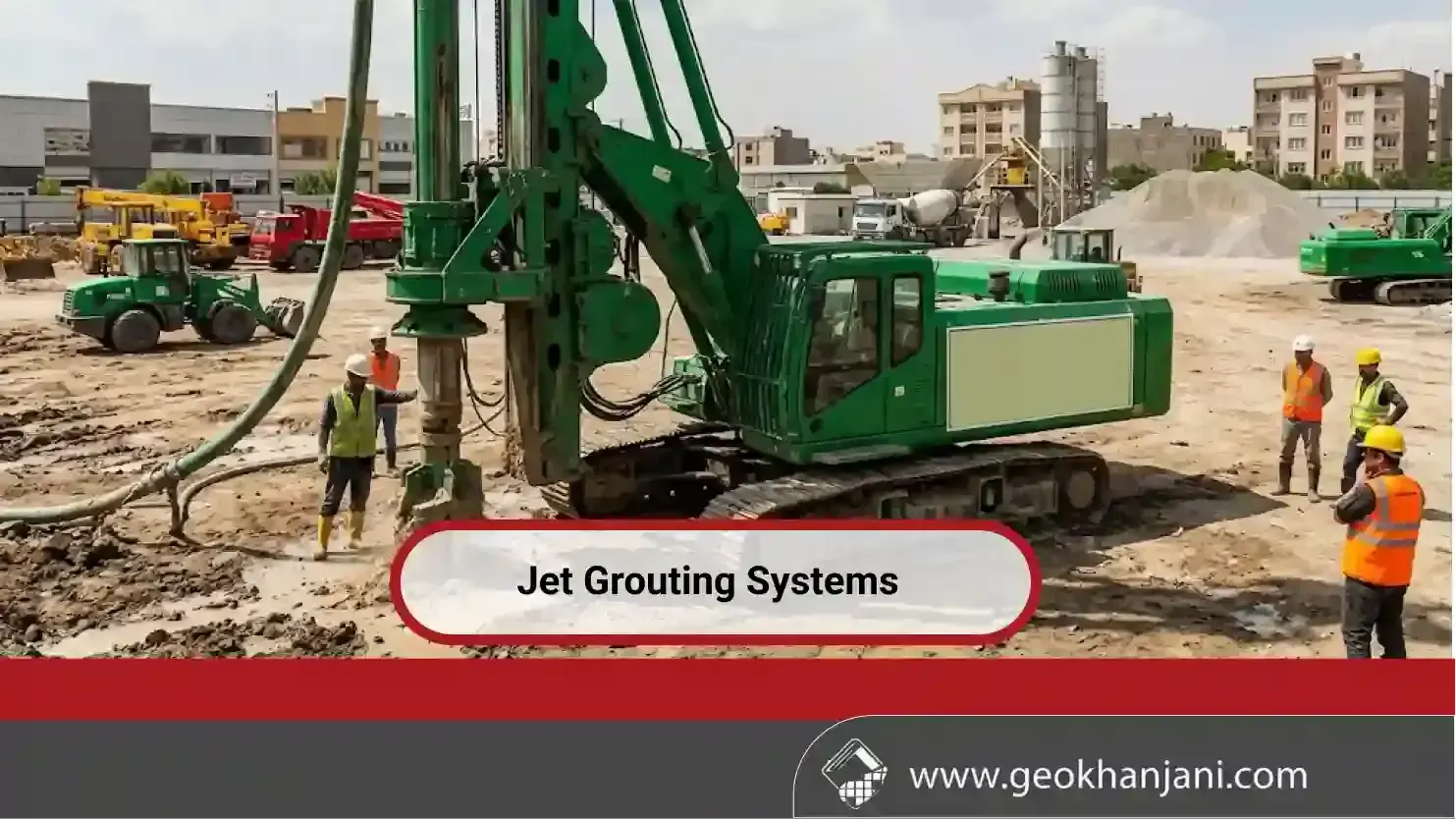

Jet Grouting Systems

What Controls the Final Jet-Grouted Diameter?

One of the most important design questions is the diameter that can realistically be achieved in the ground. The theoretical diameter should never be treated as a guaranteed construction result.

Actual geometry is influenced by several factors. Soil type matters a lot, since sand, silt, and clay all respond differently to high-energy jets. Jet energy — determined by pressure, flow rate, and nozzle characteristics — sets how much energy actually reaches the surrounding soil, and nozzle geometry (diameter, number, and arrangement) shapes the jet's characteristics further.

Monitor rotation speed changes how much jet energy gets delivered to each portion of the soil, and withdrawal speed affects the overlap and continuity of the treated material. Groundwater conditions matter too, since moving groundwater can influence grout behavior and the resulting soil-cement formation.

For important projects, these parameters should be calibrated through field trials rather than relying exclusively on theoretical assumptions.

Jet Grouting and Soil Conditions

Jet grouting is applicable to many types of ground, but its performance is strongly influenced by the geological profile.

Sands and other granular materials can often be treated effectively because the jet can break apart and rearrange the soil structure — though grain size distribution, density, and groundwater conditions all affect the final result.

Silts and clays may respond differently, since cohesive forces can affect how efficiently the jet erodes and mixes the soil. Consequently, the same operating parameters shouldn't automatically be applied across different soil profiles.

Projects with alternating layers of sand, silt, clay, or other materials need particular attention, since column diameter and strength may vary between layers. This is exactly why geotechnical investigation and field testing are such important parts of jet grouting design.

Major Applications of Jet Grouting

Jet grouting can serve several different engineering functions depending on how the treated elements are arranged and designed.

In deep excavations, jet-grouted elements can be built into systems designed to improve soil stability and reduce groundwater inflow. They may be installed beneath the excavation base or arranged as overlapping elements along specific zones.

For groundwater seepage control, overlapping jet-grouted columns can form low-permeability zones. These barriers may be used around underground structures where uncontrolled groundwater movement could interfere with excavation or construction — the effectiveness of the barrier depends heavily on the continuity and quality of the treated elements.

Jet grouting can also be considered for foundation underpinning, strengthening ground beneath existing foundations. It's particularly interesting where conventional underpinning would require extensive excavation or where access is limited, though the treatment layout must be designed around the existing foundation loads and the characteristics of the supporting soil.

In tunnel construction, underground work often runs into weak or water-bearing zones that need stabilization before excavation. Jet grouting can create reinforced soil zones around tunnel portals, shafts, cross passages, excavation faces, and other localized weak ground, with the objective of increasing ground strength, reducing permeability, or limiting deformation.

Jet Grouting for Existing Structures

One of the distinctive features of jet grouting is its potential use in restricted working environments. Compact drilling equipment can sometimes operate inside existing structures or near building foundations, which makes the technique useful for foundation rehabilitation, local ground strengthening, structural underpinning, and remediation of weak zones.

That said, injection pressures must be carefully controlled. Uncontrolled injection can potentially cause ground heave or affect nearby structures, so monitoring should be built into any project where sensitive structures are present.

Jet Grouting for Groundwater Cutoff

Groundwater management is an important application of jet grouting. When individual columns are positioned with sufficient overlap, they can form a continuous underground treatment zone that, depending on the design, functions as a cutoff wall or seepage barrier.

Typical applications include basement excavations, underground stations, utility structures, shafts, tunnels, and hydraulic structures. The required permeability should be established during design, and continuity between adjacent treatment elements is absolutely critical.

Jet Grouting Design Considerations

A proper jet grouting design should weigh both geotechnical and construction variables together.

Important design inputs include the existing soil profile, groundwater level, required treatment depth, target column diameter, required compressive strength, required stiffness, target permeability, column spacing, column overlap, structural loading, adjacent structures, and construction tolerances.

The treatment pattern may consist of isolated columns, overlapping columns, rows, blocks, or more complex arrangements, with the appropriate configuration depending on the engineering objective.

Quality Control and Verification

Jet grouting requires continuous construction monitoring, since the final treated geometry can't always be directly observed during installation.

Important records to keep include injection pressure, grout flow rate, cement consumption, monitor withdrawal rate, rotation speed, nozzle configuration, treatment depth, and return flow characteristics.

Additional verification may involve core sampling, laboratory strength testing, diameter verification, permeability testing, and inspection of trial columns.

A trial section or test column can be especially valuable before production work begins — it lets engineers evaluate whether the selected parameters are actually producing the required treatment performance.

Common Jet Grouting Construction Problems

Several issues can reduce the quality or predictability of a jet-grouted system.

The achieved column diameter may end up smaller than expected because of unsuitable soil conditions or inadequate jet energy. Excess injection pressure or poorly managed return flow can contribute to unwanted ground heave.

Changes in soil layers can cause the jet to interact differently with the ground at different depths, leading to irregular column geometry. Insufficient cement content, inappropriate grout properties, or poor mixing can leave weak soil-cement zones. And where columns are meant to form a continuous barrier, inadequate overlap can create preferential pathways for groundwater to exploit.

These risks are exactly why construction monitoring and field verification matter so much.

Jet Grouting vs. Deep Soil Mixing

Although both technologies are used for ground improvement, their operating principles differ.

Jet grouting relies on high-pressure fluid jets to interact with the soil and create treated bodies. Deep Soil Mixing, or DSM, generally relies on mechanical mixing tools to blend in-situ soil with a binder instead.

The choice between the two may depend on soil characteristics, required treatment depth, access conditions, required strength, treatment geometry, equipment availability, project schedule, and groundwater conditions. Neither technique should be considered universally superior — the appropriate method is whichever one satisfies the specific engineering requirements of the project.

Jet Grouting vs. Conventional Grouting

Conventional grouting and jet grouting both use injection technology, but their mechanisms are fundamentally different.

Conventional permeation grouting attempts to introduce grout into existing pores, fractures, or voids without significantly altering the original soil structure. Jet grouting, by contrast, intentionally uses high-energy jets to modify the surrounding soil and create an entirely new soil-cement material.

This difference matters especially when conventional grout can't adequately penetrate the ground on its own.

Jet Grouting vs. Micropiles

Micropiles and jet grouting can both show up in foundation-related projects, but they perform different engineering functions.

A micropile is primarily a structural element designed to transfer loads through a pile system. Jet grouting, on the other hand, primarily improves the surrounding ground by creating treated soil-cement zones.

In some projects, the two technologies may even be used together, depending on the structural and geotechnical requirements at hand.

Factors Affecting Jet Grouting Cost

There's no universal price for jet grouting. Project cost can be influenced by soil and rock conditions, treatment depth, the number of treatment points, required column diameter, cement consumption, the selected jetting system, groundwater conditions, site accessibility, equipment mobilization, required testing, spoil handling, and overall project duration.

A meaningful cost estimate, then, should be based on the complete treatment design rather than just drilling depth or injection quantity alone.

When Should Jet Grouting Be Considered?

Jet grouting is worth considering when a project needs ground improvement under challenging site conditions.

Typical indicators include limited construction space, existing buildings close to the work area, deep treatment requirements, high groundwater levels, weak foundation soils, the need for localized ground treatment, a requirement for reduced soil permeability, underground construction, or difficult access for conventional improvement equipment.

The final selection should always follow a geotechnical assessment and a comparison against alternative methods.

Conclusion

Jet grouting gives engineers a flexible method for modifying soil properties without conventional excavation and replacement. Its ability to create engineered soil-cement elements at depth makes it useful for ground improvement, foundation underpinning, excavation support, seepage control, and underground construction.

That said, the success of a jet grouting project depends on understanding how the injection system interacts with the actual ground conditions. Parameters like jet energy, grout properties, nozzle configuration, rotation speed, and withdrawal rate need to be established and controlled carefully.

For critical projects, site investigation, trial columns, construction monitoring, and post-treatment verification should be treated as integral parts of the engineering process — not optional extras.
