Geomembranes: HDPE, LLDPE, PVC, EPDM & More

Geomembranes are engineered synthetic barriers designed to control the movement of liquids and gases through soil, concrete, and other substrates. They're widely used in water containment, mining, landfill systems, wastewater treatment, industrial facilities, aquaculture, agriculture, and hydraulic engineering.

Although geomembranes may look similar in their basic function, their engineering behavior can vary significantly depending on the polymer family, formulation, manufacturing process, thickness, reinforcement, surface texture, and installation conditions. For this reason, selecting a geomembrane shouldn't be based simply on thickness or price — the correct choice requires an understanding of the polymer structure, mechanical performance, chemical compatibility, flexibility, environmental exposure, and project-specific loading conditions.

This article provides a technical overview of the major geomembrane types and explains where each material can be appropriate.

What Is a Geomembrane?

A geomembrane is a factory-manufactured polymeric sheet with very low permeability, and its primary function is to act as a hydraulic or environmental barrier. Unlike geotextiles, which are generally designed for separation, filtration, drainage, or protection, geomembranes are primarily used to restrict the passage of fluids and gases.

Depending on the polymer and formulation, geomembranes can provide resistance against water infiltration, wastewater, chemical solutions, hydrocarbons, UV exposure, mechanical stresses, soil movement, and temperature variations. The actual performance, though, depends on the specific product formulation and the conditions under which it's installed and operated.

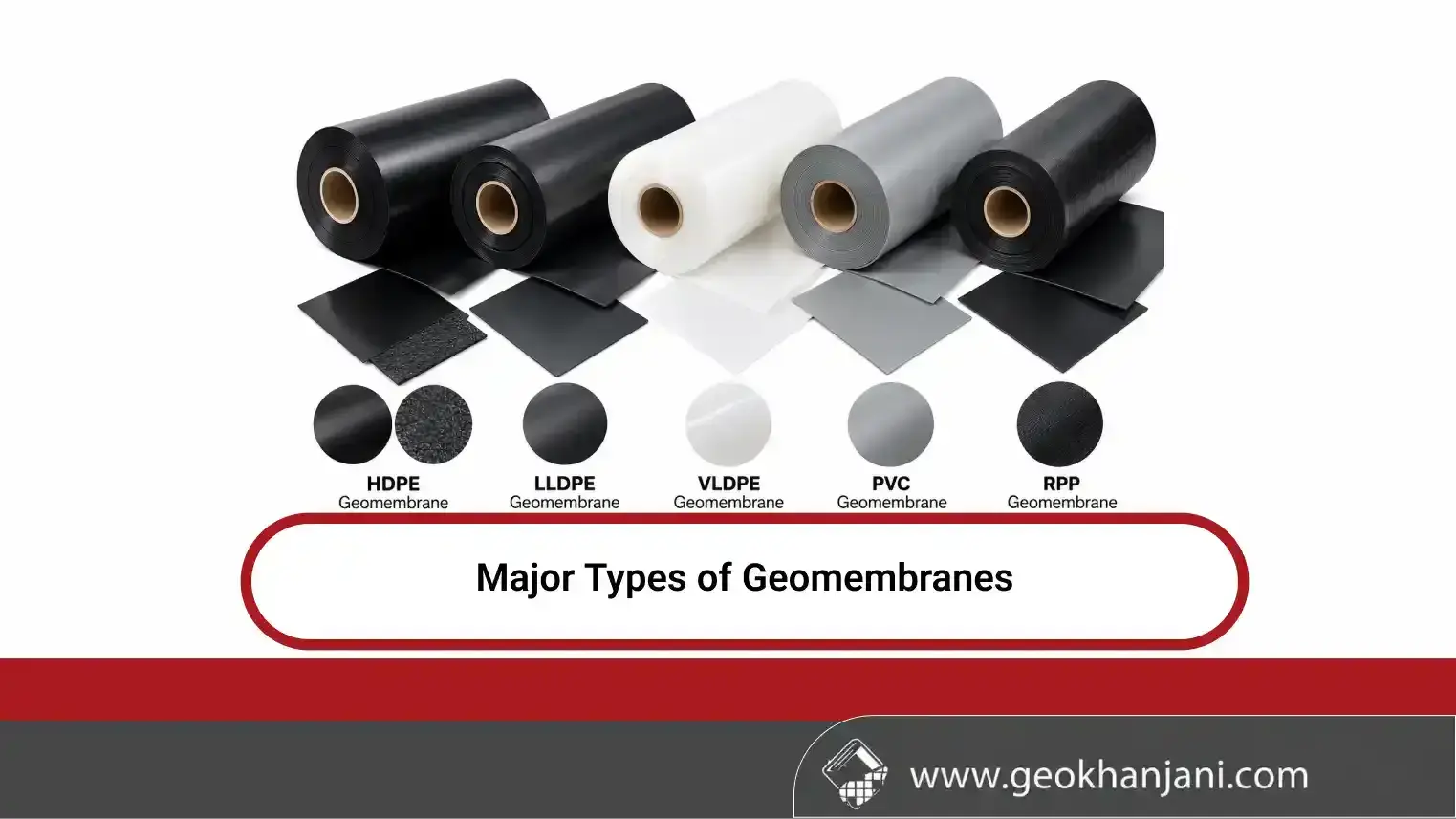

Major Types of Geomembranes

The most commonly encountered geomembrane materials include HDPE, LLDPE, VLDPE, PVC, EPDM, RPP, and reinforced polymeric geomembranes. Each material strikes a different balance between stiffness, flexibility, chemical resistance, elongation, puncture resistance, weldability, and long-term environmental performance.

Major Types of Geomembranes

HDPE Geomembrane

High-Density Polyethylene (HDPE) is one of the most widely used geomembrane materials in large-scale containment projects. HDPE geomembranes are manufactured from polyethylene resin with additives that can improve resistance to environmental degradation, and their relatively high stiffness and chemical resistance make them particularly useful where long-term containment is required.

Typical characteristics include high chemical resistance, good tensile strength, and high resistance to many aqueous chemicals. They also tend to offer good UV resistance when properly formulated, relatively high stiffness, good puncture resistance, and excellent compatibility with thermal welding — all of which make HDPE a common choice where chemical resistance and long-term containment are major design considerations.

HDPE geomembranes are commonly used in landfill liners and caps, mining containment systems, wastewater lagoons, industrial ponds, agricultural reservoirs, secondary containment, leachate containment, and large water storage facilities.

One engineering limitation worth noting: HDPE's relatively high stiffness can make it less forgiving when installed over substrates experiencing significant differential movement, so site preparation and panel layout are particularly important in large HDPE installations.

LLDPE Geomembrane

Linear Low-Density Polyethylene (LLDPE) geomembranes are another important polyethylene-based barrier material. Compared with conventional HDPE, LLDPE products are generally characterized by greater flexibility and elongation — a difference that matters when the geomembrane needs to accommodate substrate deformation.

Depending on formulation, LLDPE geomembranes can offer high elongation, greater flexibility, good puncture resistance, good stress-crack resistance, good chemical resistance, good weldability, and improved conformity to irregular surfaces.

LLDPE can be considered for agricultural ponds, irrigation reservoirs, aquaculture facilities, flexible water containment, secondary containment, soil structures with potential movement, and complex geometric surfaces. Its higher flexibility is particularly advantageous where substrate deformation is expected.

VLDPE Geomembrane

Very Low-Density Polyethylene (VLDPE) represents a more flexible polyethylene family, generally characterized by high elongation and flexibility compared with stiffer polyethylene geomembranes. This makes VLDPE attractive for applications where the barrier needs to conform closely to irregular or moving substrates.

Typical advantages include very high flexibility, high elongation, good conformability, resistance to mechanical deformation, and suitability for irregular geometries. VLDPE may be worth considering when the design calls for a greater ability to accommodate movement than a conventional stiff geomembrane can provide — though material selection should still be based on the complete mechanical and environmental requirements rather than flexibility alone.

PVC Geomembrane

Polyvinyl Chloride (PVC) geomembranes have been used in waterproofing and containment applications for decades, known for their flexibility and ability to adapt to complex geometries. Unlike polyethylene geomembranes, PVC formulations commonly incorporate plasticizers that influence flexibility and long-term behavior.

PVC geomembranes can offer high flexibility, good conformability, ease of handling, suitable welding characteristics, good waterproofing performance, and availability in different formulations and thicknesses. They may be used in waterproofing systems, water reservoirs, architectural water features, certain industrial containment systems, roofing and underground waterproofing, and tunnels and civil engineering structures.

PVC selection requires attention to formulation, plasticizer behavior, chemical compatibility, and long-term exposure conditions — a PVC geomembrane suited to one application shouldn't automatically be assumed suitable for another.

EPDM Geomembrane

Ethylene Propylene Diene Monomer (EPDM) is a synthetic rubber material widely recognized for its flexibility and weathering resistance. EPDM geomembranes behave differently from thermoplastic polyethylene and PVC products because EPDM is an elastomeric material.

It's generally associated with high flexibility, excellent elongation, good weather resistance, good resistance to ozone, good UV resistance, and a strong ability to accommodate movement — characteristics that make it attractive where flexibility and environmental exposure matter.

EPDM can be used in decorative ponds, water features, landscape water containment, reservoirs, flexible waterproofing applications, and selected environmental containment systems. Its suitability for aggressive chemicals or hydrocarbons should always be evaluated using product-specific compatibility data.

RPP Geomembrane

Reinforced Polypropylene (RPP) geomembranes combine a polypropylene-based polymer system with reinforcement, which can contribute to dimensional stability and mechanical performance.

Depending on the product design, RPP geomembranes can offer good flexibility, high dimensional stability, good tensile performance, resistance to certain chemicals, good weathering characteristics, and suitability for specialized containment systems. RPP is often considered where the combination of flexibility and reinforcement provides a useful engineering advantage.

Reinforced Geomembranes

Some geomembranes contain an internal reinforcing layer, commonly made from a textile or scrim, which can improve dimensional stability and tensile behavior. These products differ from homogeneous geomembranes because their performance depends on both the polymer coating and the reinforcement structure.

Potential applications include reservoir covers, industrial containment, secondary containment, architectural waterproofing, floating covers, and specialized hydraulic structures. When reinforced geomembranes are selected, the interface between the reinforcement and polymer layers becomes an important part of the product's performance.

Smooth vs. Textured Geomembranes

Geomembranes can also be classified by surface structure.

Smooth geomembranes have relatively uniform surfaces and are widely used in containment applications. Their advantages include easy handling, efficient panel deployment, straightforward thermal welding, and lower friction compared with textured surfaces — they're commonly used where interface friction isn't the controlling design parameter.

Textured geomembranes are manufactured with a surface profile designed to increase interface friction. They're useful on slopes where sliding resistance between the geomembrane and adjacent geosynthetic or soil layers matters — applications can include landfill slopes, mining containment, steep reservoir slopes, reinforced earth systems, and composite liner systems. Texturing may appear on one or both sides depending on the product.

The choice between smooth and textured surfaces should be based on interface shear behavior and slope stability calculations, not simply on product preference.

Homogeneous and Reinforced Geomembranes

Another useful way to classify geomembranes is by internal construction. Homogeneous geomembranes consist primarily of a uniform polymeric sheet — many HDPE and LLDPE products fall into this category. Reinforced geomembranes incorporate a reinforcement layer within the polymer structure; this can improve dimensional stability and tensile characteristics, but it can also affect fabrication, detailing, repair, and installation procedures.

How Do Different Geomembrane Types Compare?

In terms of chemical resistance, HDPE, LLDPE and VLDPE all tend to perform well, while PVC and EPDM depend more on the specific application, and RPP generally performs well too. Flexibility runs from moderate in HDPE, to high in LLDPE, PVC and RPP, to very high in VLDPE and EPDM — and elongation follows a similar pattern.

UV resistance is generally good across HDPE, LLDPE and VLDPE when properly formulated, depends on formulation for PVC, is very good for EPDM, and good for RPP. Thermal welding is excellent for HDPE, LLDPE and VLDPE, uses suitable dedicated methods for PVC, is product-dependent for EPDM, and suitable for RPP.

For large containment systems, HDPE and LLDPE tend to excel, VLDPE and RPP perform well, and PVC and EPDM depend more on the specific application. For complex geometry, the pattern reverses somewhat — VLDPE and EPDM offer very high adaptability, LLDPE, PVC and RPP offer high adaptability, and HDPE offers moderate adaptability.

This is a general engineering comparison — actual performance should always be confirmed through the manufacturer's technical data and project specifications.

How Polymer Structure Affects Geomembrane Performance

The differences between geomembranes are closely tied to polymer structure. Polyethylene-based materials can combine low permeability, chemical resistance, mechanical strength, and thermal weldability, though increasing stiffness can reduce a material's ability to accommodate large deformation.

Elastomeric materials such as EPDM behave differently — their high elasticity lets them accommodate significant movement, but their chemical resistance profile needs to be evaluated for the specific application. The correct geomembrane isn't necessarily the material with the highest value for one individual property; it's the one that provides the most appropriate performance balance for the project's actual conditions.

Geomembrane Selection by Application

For agricultural and water-storage reservoirs, polyethylene geomembranes such as HDPE and LLDPE are commonly considered. LLDPE can be attractive where flexibility matters, while HDPE may be preferred where stiffness, chemical resistance, and large-scale containment performance are priorities.

Aquaculture applications require weighing water quality, material compatibility, puncture resistance, surface characteristics, ease of cleaning, and long-term exposure — the product should be selected according to the intended use and applicable regulatory requirements.

Landfill applications generally call for highly engineered containment systems. HDPE geomembranes are widely used in landfill liner and cap systems because of their chemical resistance and mechanical properties, though in these systems the geomembrane is usually just one component of a larger composite barrier that may include geotextiles, geonets, geocomposites, drainage layers, and compacted soil liners.

Mining containment systems can expose geomembranes to aggressive chemical solutions and significant mechanical stresses, so material selection may require detailed evaluation of chemical composition, solution concentration, temperature, exposure duration, subgrade conditions, hydraulic head, and installation stresses. HDPE is commonly considered in many mining containment systems, but polymer selection should always be verified against project-specific compatibility requirements.

Industrial applications can be particularly demanding, since the contained liquid may interact with the polymer over long periods. The selection process should include a genuine chemical compatibility assessment rather than relying on generic statements like "chemical resistant."

Geomembrane Thickness: Why It Matters

Geomembrane thickness is an important design variable, but it shouldn't be treated as the only indicator of quality. Common commercial thicknesses include 0.75 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, and higher thicknesses for specialized applications.

The appropriate thickness depends on subgrade quality, expected mechanical loading, puncture risk, installation conditions, fluid depth, exposure conditions, required service life, protection layers, and project specifications. A thicker geomembrane may offer increased resistance to certain mechanical threats, but the polymer type and overall system design remain equally important.

The Role of Geotextile Protection

A geomembrane can be vulnerable to puncture when installed over rough or irregular substrates, which is why a geotextile protection layer is often incorporated beneath or above it. Selecting the protection geotextile should factor in mass per unit area, puncture resistance, tear resistance, interface behavior, compression, and installation conditions.

The objective isn't simply picking the heaviest geotextile available — it's providing the protection the actual site conditions call for.

Standards and Testing

Geomembrane specifications are commonly supported by standardized testing procedures. Depending on the project and material, testing can address thickness, density, tensile strength, elongation, tear resistance, puncture resistance, carbon black characteristics, oxidative induction behavior, stress cracking, and dimensional stability.

GRI specifications and ASTM and ISO test methods are frequently referenced in geosynthetic engineering, though standards should always be interpreted within the context of the specific geomembrane type and project specification.

What Determines Long-Term Geomembrane Performance?

The service life of a geomembrane is shaped by several interacting factors. Material formulation — polymer type, additives, stabilizers, and manufacturing quality — can affect long-term behavior, and elevated temperatures can accelerate certain degradation mechanisms. Exposed geomembranes need adequate resistance to ultraviolet radiation, and long-term contact with chemicals can alter polymer properties depending on the material.

Mechanical loading — stress, strain, puncture, abrasion, and repeated deformation — also affects performance. And even a high-quality geomembrane can fail prematurely if the substrate preparation, welding, handling, or protection is inadequate; installation quality matters just as much as the material itself.

Common Mistakes When Choosing a Geomembrane

Choosing based only on price is a frequent misstep — the lowest purchase price doesn't necessarily represent the lowest lifecycle cost. A proper comparison should include material quality, testing, installation, welding, protection, expected service life, and maintenance requirements.

Selecting thickness without site analysis is another common error, since thickness should be tied to mechanical and environmental conditions. Ignoring chemical compatibility is particularly risky for industrial, mining, and waste containment systems, and choosing the polymer without considering movement can backfire — a stiff material may not suit every substrate condition. Ignoring surface configuration is a mistake too: on steep slopes, interface friction between geosynthetic layers can become a critical design parameter.

A Practical Geomembrane Selection Framework

A technical selection process can follow a logical sequence. Start by defining the containment medium — fresh water, wastewater, agricultural water, leachate, chemical solutions, hydrocarbons, or mining fluids. Then evaluate the substrate: soil type, surface roughness, settlement potential, stones and sharp objects, and drainage conditions.

Next, determine the mechanical requirements — fluid depth, slope angle, traffic, equipment loads, potential puncture, and differential settlement — along with the environmental exposure, including UV radiation, temperature, rainfall, freeze-thaw conditions, wind, and chemical exposure.

From there, select the polymer and thickness by comparing HDPE, LLDPE, VLDPE, PVC, EPDM, RPP, or reinforced products against the project requirements, and define the protection and installation requirements — whether geotextile protection, drainage layers, anchorage systems, or other geosynthetics are needed. Finally, establish quality-control requirements: material inspection, welding procedures, seam testing, repairs, and final inspection before installation begins.

Final Considerations

There's no universal "best geomembrane" for every project. HDPE is widely used when chemical resistance, durability, and large-scale containment are priorities. LLDPE can be advantageous when greater flexibility and elongation are required, and VLDPE offers even greater flexibility for applications involving significant deformation or complex geometry.

PVC is known for its flexibility and shows up in various waterproofing and containment applications where its formulation fits. EPDM provides high elasticity and strong weathering performance, making it useful in flexible waterproofing and water containment applications. RPP and reinforced geomembranes can offer specialized combinations of flexibility, dimensional stability, and mechanical performance.

Ultimately, geomembrane selection should draw on a combination of polymer chemistry, mechanical requirements, environmental exposure, chemical compatibility, substrate conditions, installation method, and expected service life. For engineering projects, the product datasheet, applicable standards, project specifications, and manufacturer technical documentation should always be reviewed before final material selection.
