Geodrain is a high-performance geocomposite drainage system consisting of an HDPE drainage core and nonwoven geotextile filter. It efficiently removes groundwater, reduces hydrostatic pressure, protects waterproofing systems, and replaces traditional gravel drainage in civil engineering, foundation, retaining wall, roof garden, and infrastructure projects.
Categories:
Geodrain
Geodrain is a high-performance geocomposite drainage system designed to collect and discharge groundwater efficiently while reducing hydrostatic pressure on structures. It consists of a three-dimensional HDPE drainage core bonded to one or two layers of nonwoven geotextile, providing excellent drainage capacity, filtration, and long-term durability.
Geodrain is a lightweight and cost-effective alternative to traditional gravel drainage systems, making it ideal for modern civil engineering, waterproofing, and environmental projects.
Geodrain offers superior drainage performance while minimizing installation time and material costs.

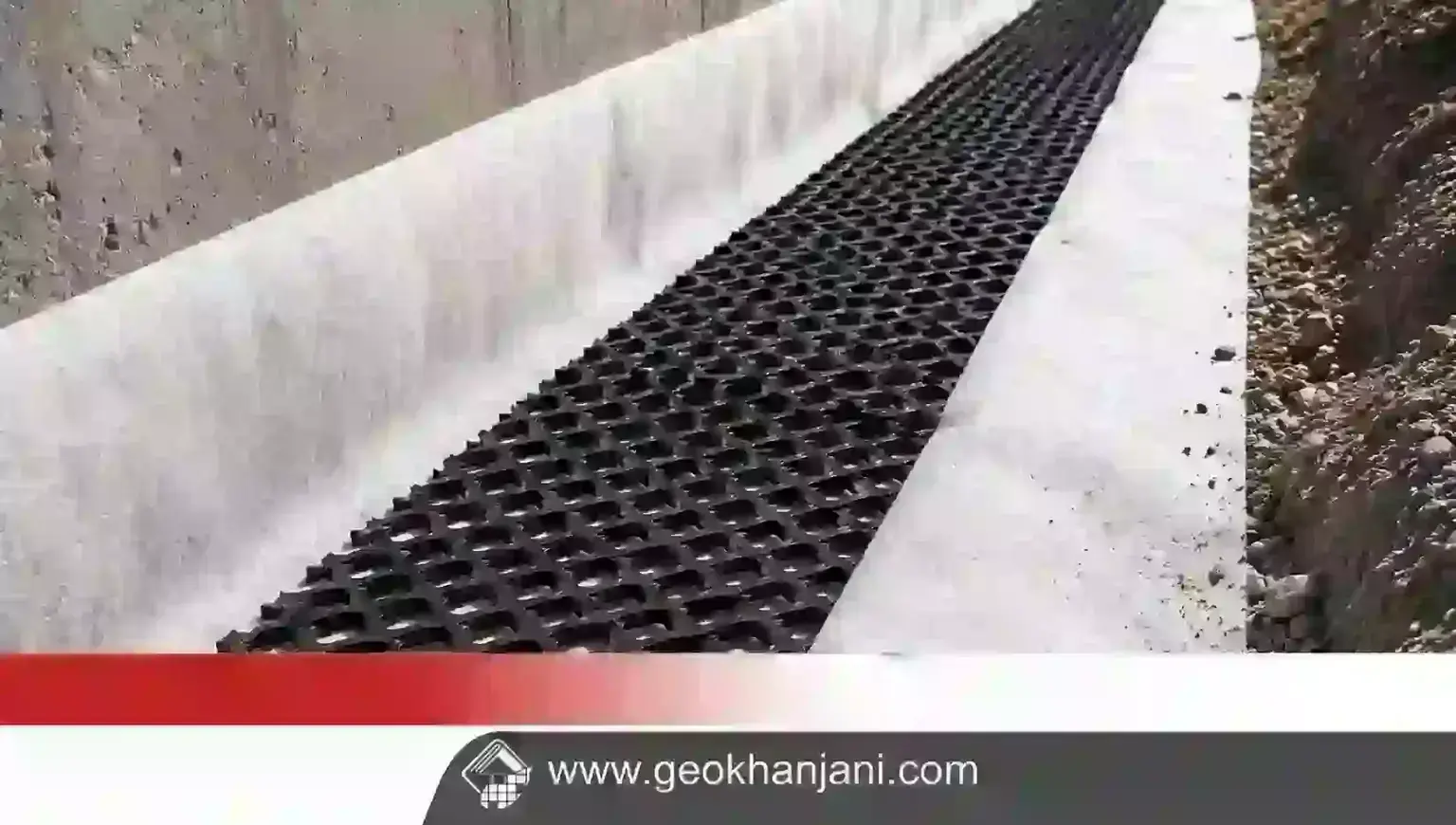

Geodrain is widely used in various construction and infrastructure projects, including:
Applications of GeodrainSpecification | Description |
Core Material | High-Density Polyethylene (HDPE) |
Filter Layer | Nonwoven Polypropylene (PP) or Polyester (PET) Geotextile |
Core Thickness | 5–30 mm (Depending on Model) |
Water Flow Capacity | High |
Compressive Strength | Excellent |
Chemical Resistance | Excellent |
Biological Resistance | High |
Installation | Vertical & Horizontal |
Compared with conventional drainage systems, Geodrain provides numerous advantages:

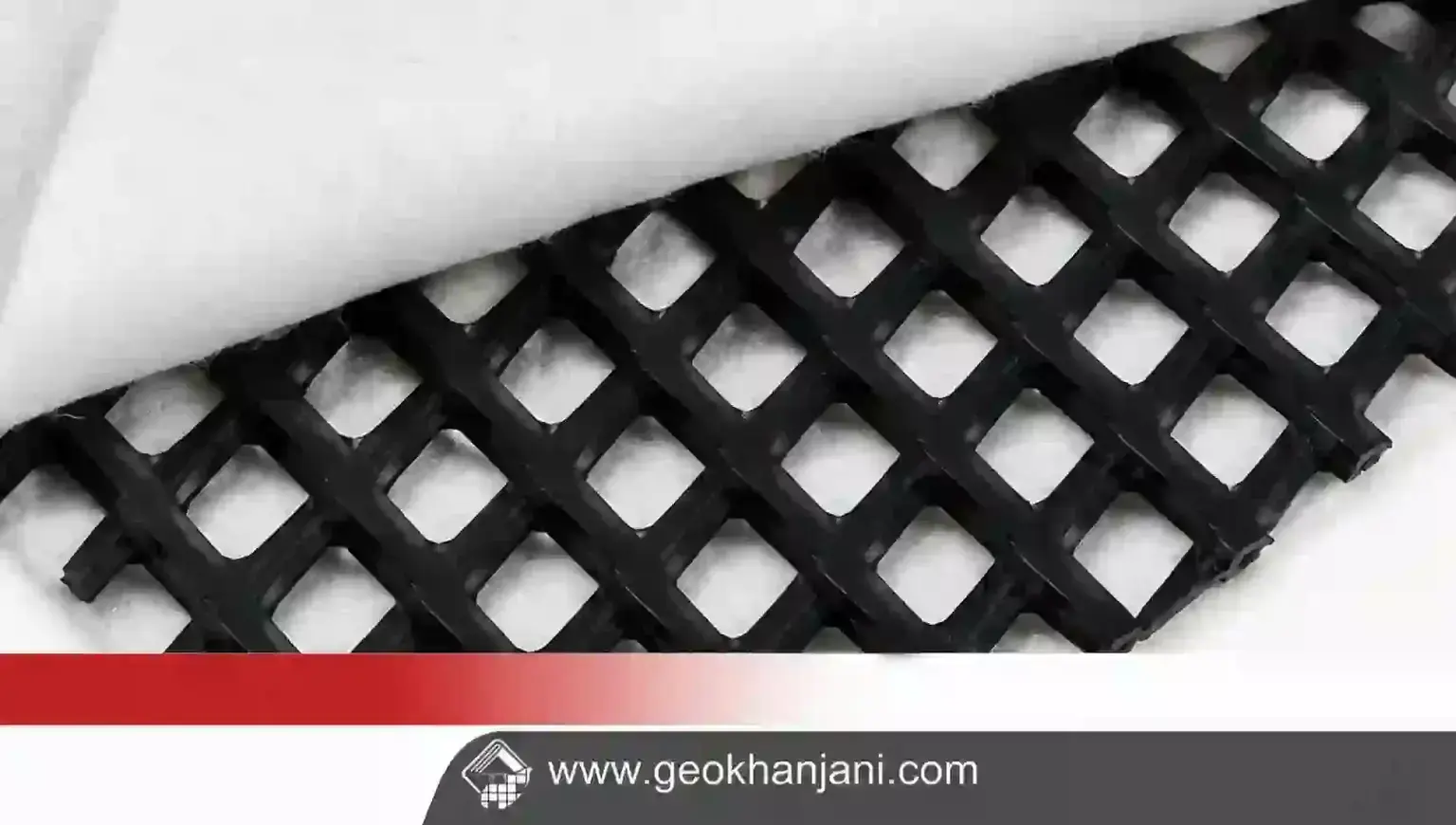

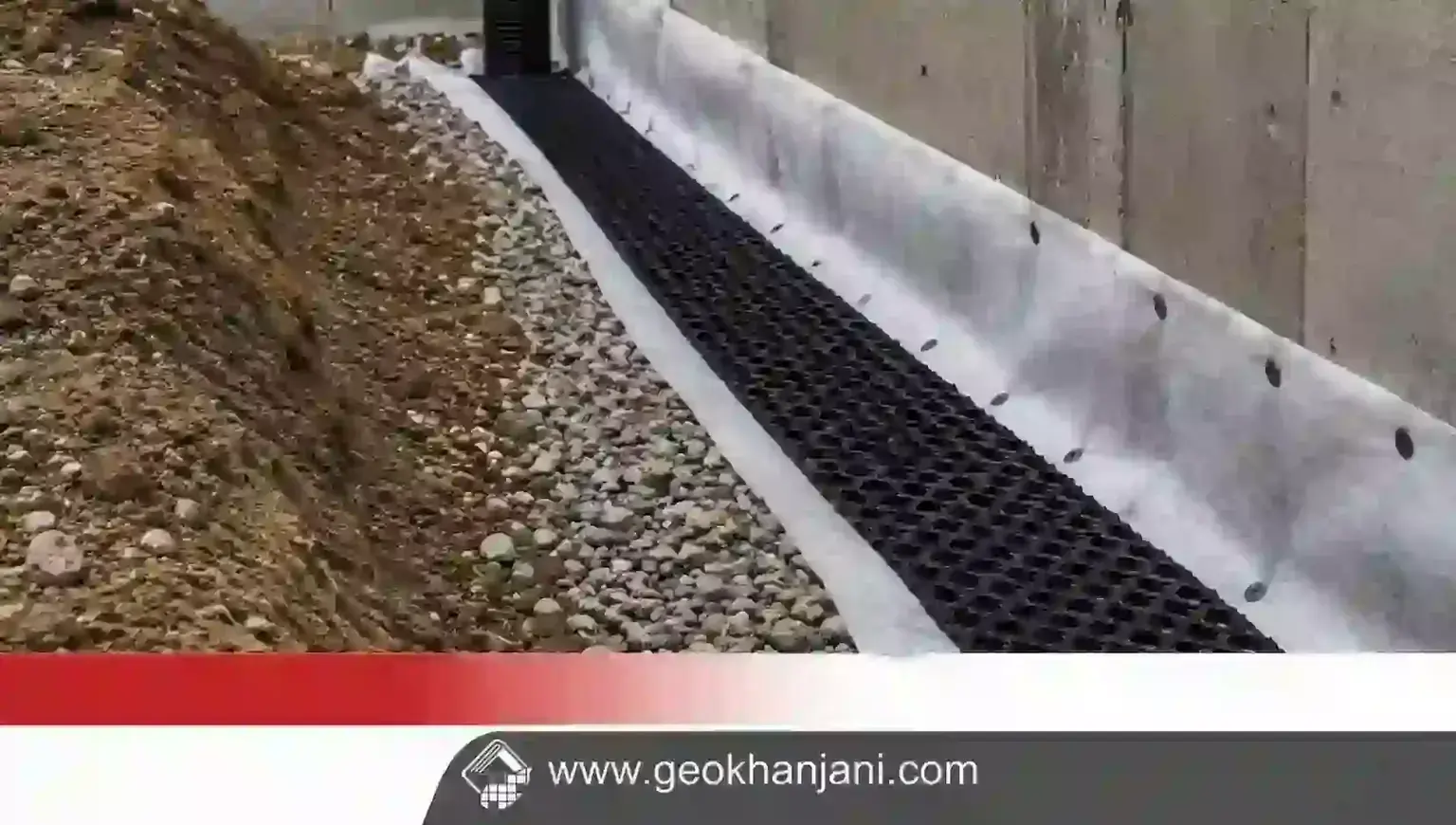

The HDPE drainage core creates continuous flow channels that allow water to move quickly toward drainage outlets. The attached nonwoven geotextile acts as a filter, preventing soil particles from entering the drainage core while maintaining excellent water flow.
This combination ensures efficient drainage without clogging, even under high loads.
Geodrain | Traditional Gravel Drainage |
Lightweight | Heavy |
Easy to transport | Expensive transportation |
Fast installation | Labor-intensive |
High drainage efficiency | Variable performance |
Space-saving | Requires thick gravel layers |
Long service life | Higher maintenance requirements |
Selecting the appropriate Geodrain depends on factors such as water flow requirements, compressive loads, soil conditions, and project specifications. Our experts can help you choose the most suitable Geodrain solution for your waterproofing and drainage project.
