Geofoam

Lightweight, High-Performance Geofoam for Construction and Geotechnical Applications

Geofoam is a lightweight geosynthetic material made from expanded polystyrene (EPS) or extruded polystyrene (XPS). It's widely used in civil engineering and geotechnical projects where reducing structural loads, improving stability, and simplifying construction all matter.

Because of its extremely low density compared with conventional soil and aggregate, geofoam can significantly reduce the load placed on underlying soils and structures. Its combination of low weight, dimensional stability, thermal insulation, and easy installation makes it a practical solution across a wide range of construction projects.

What Is Geofoam?

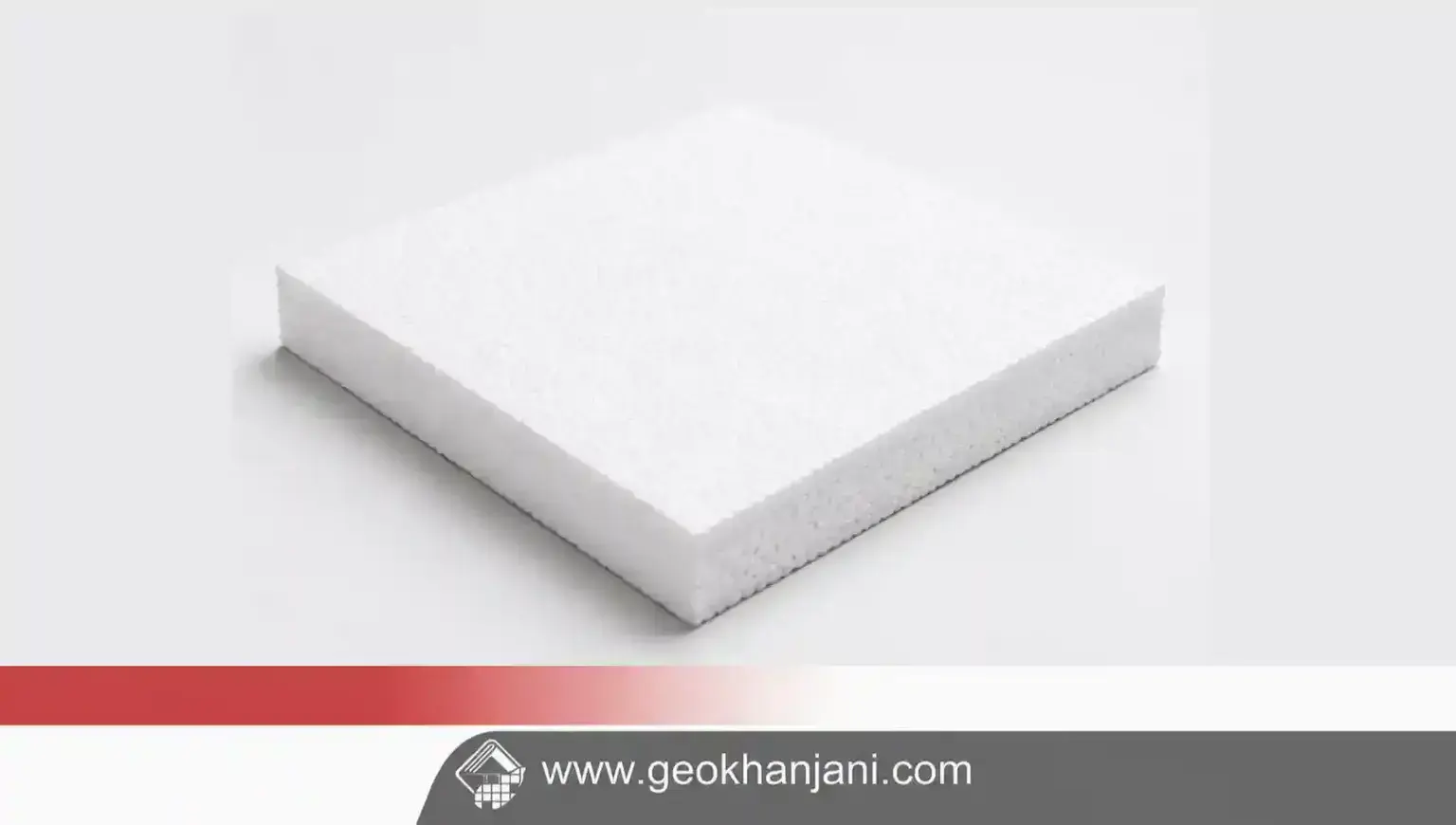

Geofoam is a rigid cellular foam material designed for use as a lightweight fill in construction and geotechnical engineering.

Unlike conventional fill materials such as soil, sand, or gravel, geofoam has a very low unit weight. That characteristic lets engineers replace heavy materials with lightweight blocks or panels while still maintaining the geometry the project needs.

Geofoam blocks can be manufactured in different dimensions and densities depending on the project. The material can also be cut and shaped relatively easily, letting it adapt to complex construction conditions.

Main Types of Geofoam

The two materials commonly used for geofoam applications are EPS geofoam and XPS foam.

Expanded polystyrene, or EPS, is one of the most widely used materials for lightweight fill. EPS geofoam comes in different densities and can be manufactured as large blocks for use beneath roads, embankments, foundations, and other structures. Its main advantages include very low weight, easy handling and installation, good compressive strength, good dimensional stability, thermal insulation properties, easy cutting and shaping, and reduced construction loads overall.

Extruded polystyrene, or XPS, is another type of rigid foam suited to applications that need both low weight and thermal insulation. XPS generally has a closed-cell structure and can offer good resistance to moisture under the right conditions.

The choice between EPS and XPS comes down to the project design, required mechanical properties, exposure conditions, and engineering specifications.

Applications of Geofoam

Geofoam shows up in a variety of civil engineering and construction projects wherever lightweight fill offers a technical or economic edge.

In road and highway construction, geofoam can be installed beneath roads and pavement structures to reduce the weight of the fill — particularly useful in areas with weak or compressible soils.

One important use is building lightweight bridge approaches. Replacing conventional soil with geofoam can reduce settlement and minimize differential movement between the bridge structure and the adjacent roadway.

For slope stabilization, geofoam can reduce the driving load on slopes. By swapping heavy soil for lightweight blocks, engineers can improve slope stability and reduce the stress placed on underlying layers.

It's also used in embankments — lightweight geofoam fill works well for highway, railway, and infrastructure embankments where conventional fill would otherwise create excessive loads on weak foundations.

In foundation and structural applications, geofoam can be built into certain systems to reduce dead loads, though its use should always be based on structural calculations and project-specific engineering requirements.

Because it's lightweight and easy to shape, geofoam also shows up in landscaping and architectural projects — elevated landscaping features, artificial terrain, roof gardens, architectural forms, and other lightweight structures.

And for thermal insulation, certain foam products can be built into building and infrastructure systems where both lightweight fill and thermal performance are needed at once.

Advantages of Geofoam

The main advantage of geofoam is its exceptionally low density compared with traditional fill materials.

It can substantially cut the dead load placed on weak soils, foundations, and existing structures. Large blocks are also much easier to transport and handle than equivalent volumes of soil or aggregate, and because the blocks are lightweight and easy to position, installation often moves faster than placing conventional fill.

When properly designed and installed, swapping heavy conventional fill for geofoam can also help reduce stress-induced settlement in weak or compressible soils. The material cuts and shapes easily to fit project-specific requirements, and depending on the foam type and density, it can offer useful thermal insulation properties on top of everything else.

Important Technical Considerations

Geofoam offers a lot of advantages, but selecting it should always be grounded in real engineering requirements.

Important parameters to work through include the required density, compressive strength, long-term compressive behavior, the project's actual loading conditions, block dimensions, moisture and environmental exposure, fire safety requirements, protection against hydrocarbons and solvents, installation conditions, and any covering or protection systems the project needs.

The right geofoam density and grade should be determined based on the loads and conditions the project will face over its service life — not chosen off a general spec sheet.

Geofoam Installation

Geofoam installation is generally straightforward, but proper preparation still matters a lot.

The process typically involves preparing and leveling the foundation surface, installing any required drainage or protection layers, and positioning the geofoam blocks according to the engineering drawings. Joints between successive layers are often staggered where required, and blocks get cut to fit around structures and project details as needed. Protective layers or membranes may be installed where necessary, and finally the pavement, soil, concrete, or structural layer goes on top.

Care should be taken during transportation and installation to avoid excessive damage to the blocks — a chipped or crushed block can compromise performance even if the material itself was specified correctly.

Why Choose Geofoam for Lightweight Fill?

Traditional fill materials can put significant loads on weak soils and existing structures. In projects where settlement, slope stability, or foundation capacity is a concern, cutting the weight of the fill can be a major engineering advantage

Geofoam offers a lightweight alternative that simplifies construction while reducing how much conventional fill is needed.

That said, the final product selection should always be based on project calculations, applicable standards, and recommendations from qualified engineers — not just picked because it's lighter.

Geofoam Supply by GeoKhanjani

GeoKhanjani provides geosynthetic and lightweight construction solutions for civil engineering and infrastructure projects. Geofoam can be supplied according to project requirements, including the specific dimensions and technical specifications needed.

Before ordering, it's worth evaluating factors like project loads, soil conditions, application type, dimensions, and the required compressive performance to make sure the right geofoam product gets selected.

Conclusion

Geofoam is a versatile lightweight fill material that can offer real advantages in geotechnical and civil engineering projects. Its low density, ease of handling, compressive performance, and thermal insulation properties make it a good fit for roads, bridge approaches, embankments, slope stabilization, foundations, and landscaping.

Choosing the right type and density of geofoam is essential for getting reliable long-term performance. With proper engineering design and installation, geofoam can be an effective alternative to conventional heavy fill materials.
